Cathodic Protection Anodes That Protect Steel for Decades
MMO and platinized titanium anodes for impressed-current cathodic protection (ICCP) of buried pipelines, storage tanks, marine structures and reinforced concrete. Every anode is coated, rated and documented for your soil, water, current demand and design life.
Request a Quote Talk to an Engineer
Corrosion Is Silent — Cathodic Protection Must Be Precise
Buried pipelines, storage tanks, ship hulls, offshore platforms and reinforced concrete corrode continuously in soil, seawater, groundwater and chloride-laden air. CP is the electrochemical method that stops this: an external current forces the steel surface into a protected potential so corrosion no longer proceeds.
Two systems exist: sacrificial anodes (zinc, aluminium, magnesium) that protect small or local zones, and impressed-current (ICCP) systems where a rectifier drives current through long-life MMO titanium anodes — the right choice for large, remote or decades-long assets.
Where Corrosion Attacks — and How Ehisen Answers
Every CP asset faces a different environment. Match the threat below with the anode system Ehisen supplies for it.

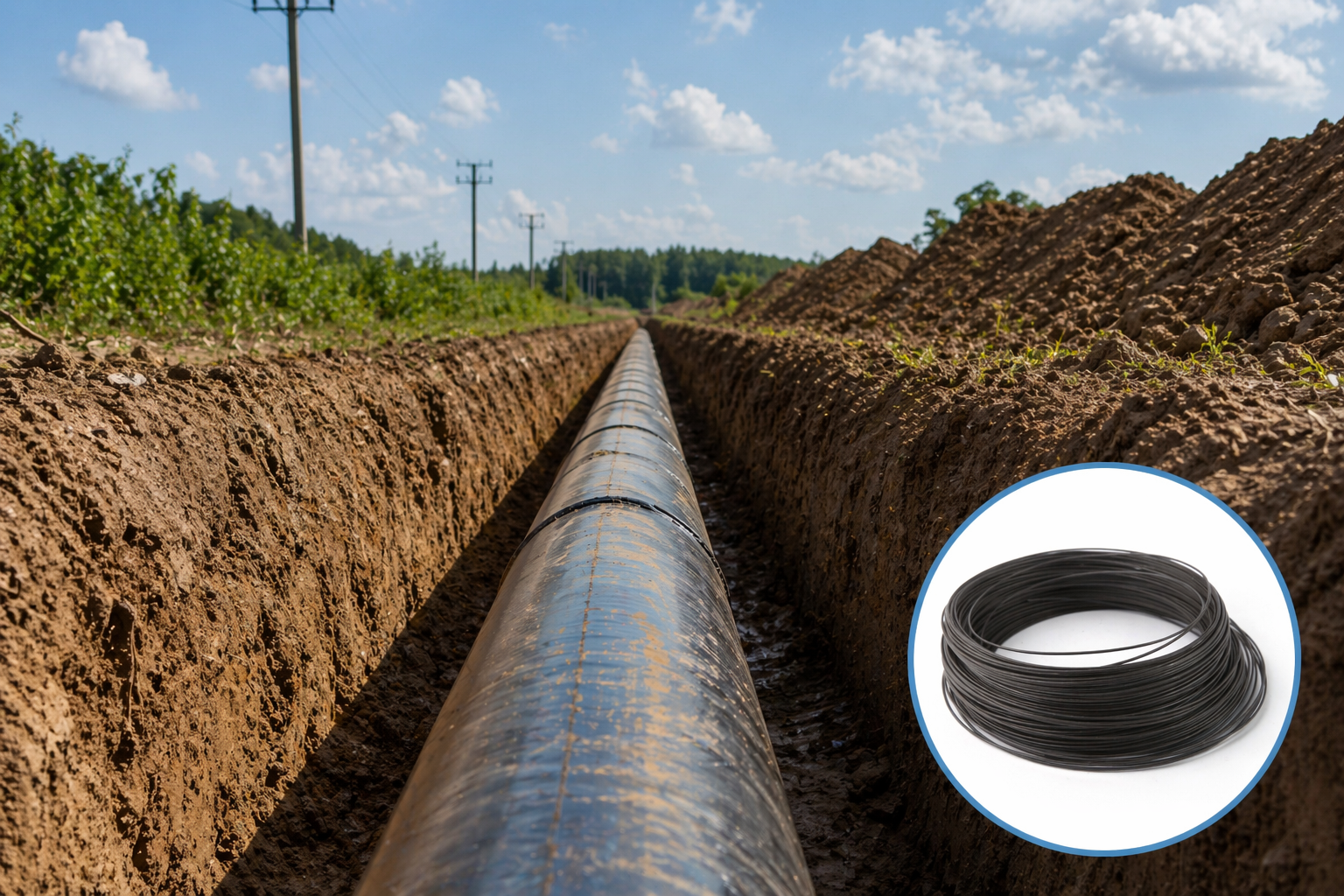

Buried Pipelines & Groundbeds
Soil corrosion, coating defects, stray current and long-distance attenuation attack pipelines and terminals, especially where coatings are damaged.

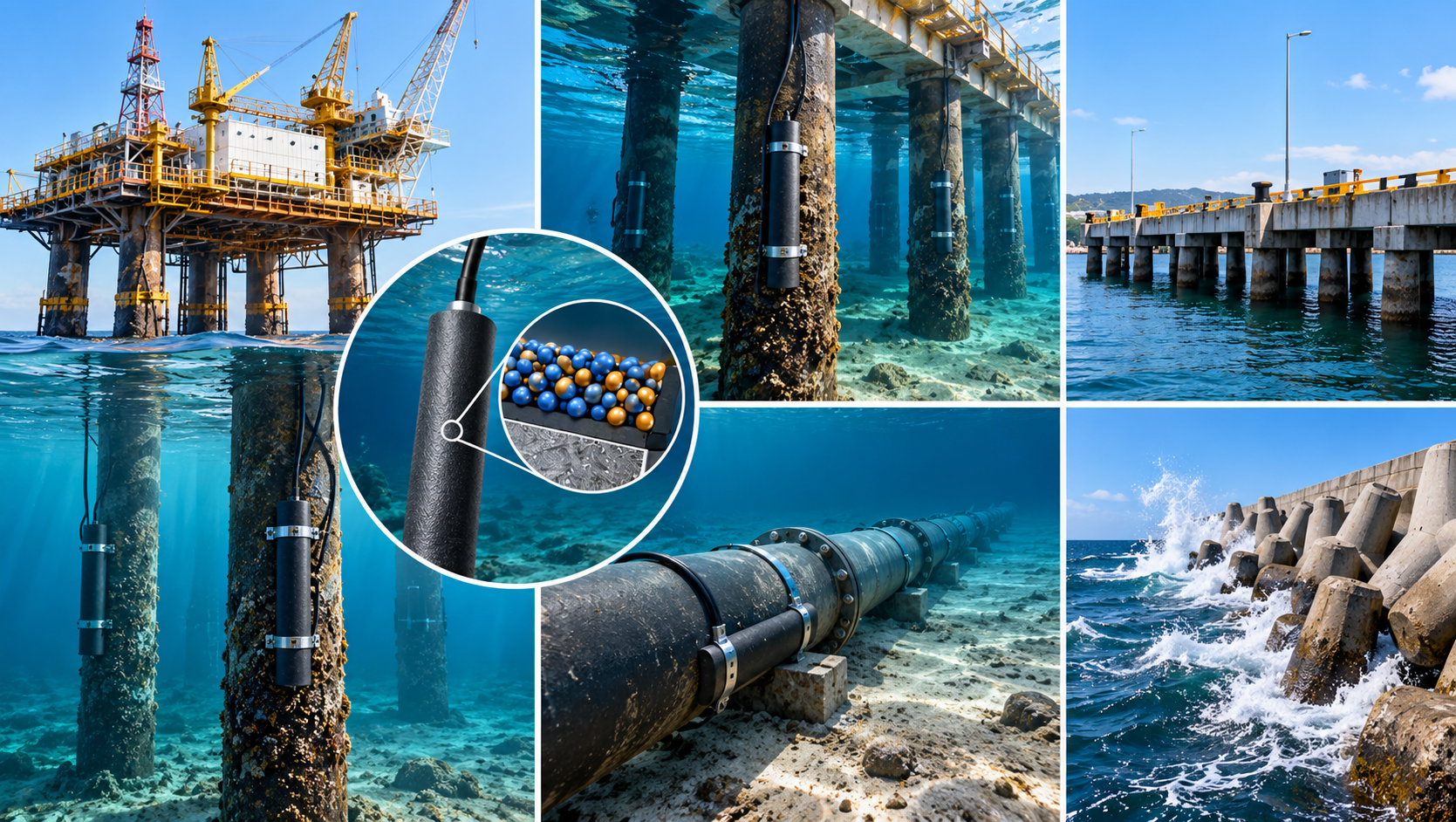

Marine & Offshore Structures
Seawater, chloride exposure, splash-zone attack and difficult access accelerate corrosion on hulls, jetties, pilings and platforms.
Storage Tanks & Vessels
Tank bottoms and vessel interiors corrode from soil contact, stored water and condensate — often inaccessible once in service.
Concrete & Bridges
Chloride ingress drives rebar corrosion in bridges, decks and tunnels, causing spalling that is expensive and dangerous to repair.
Choose the Right CP Anode for Your Asset
Different assets require different protection strategies. Use the guide below to match your application with the most suitable Ehisen solution.
| Application | Recommended Solution | Typical Products |
|---|---|---|
| Long-distance buried pipelines | ICCP deep or shallow groundbeds | MMO tubular anodes · pre-packaged canisters · CP cables |
| Tank farms & tank bottoms | Distributed anode strings / ribbon | MMO strip anodes · tubular strings · reference electrodes |
| Marine hulls & offshore platforms | Hull / remote ICCP | MMO disc · tubular anodes · sacrificial Zn / Al |
| Vessel internals & water heaters | Internal probe / flexible anodes | MMO probe anodes · MMO wire anodes |
| Concrete structures & bridges | Rebar CP with embedded mesh | MMO mesh · ribbon anodes · Ir-Ta coating |
| Freshwater intakes & locks | ICCP for freshwater systems | Ir-Ta tubular · mesh anodes |
Need help selecting the exact specification? Our engineers can size the anode, coating and layout for your soil resistivity, water type and current demand. Send your requirements →
Ehisen CP Anode Range
Five core MMO titanium formats, each rated to its operating environment with traceable material and coating documentation.

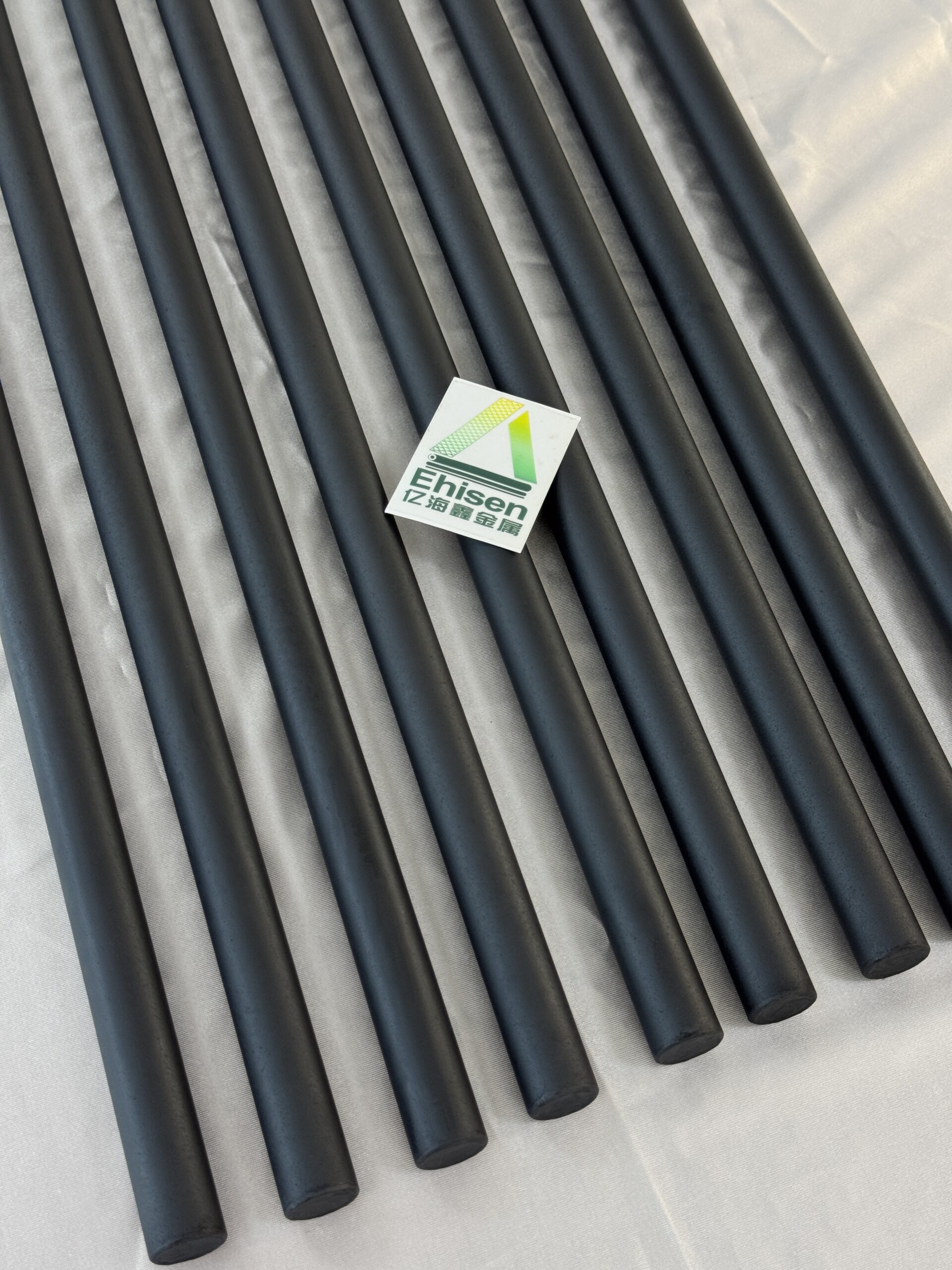

MMO Tubular Anode
Bare, cable-connected, string or canister-ready tubes for soil, freshwater and seawater ICCP.
| Diameters | Φ16 – Φ50 mm |
| Lengths | 500 – 1524 mm |
| Coating | IrO₂/Ta₂O₅ or IrO₂/RuO₂ |
| Current density | 100 A/m² soil · 600 A/m² seawater |
| Design life | 20 – 30 years |

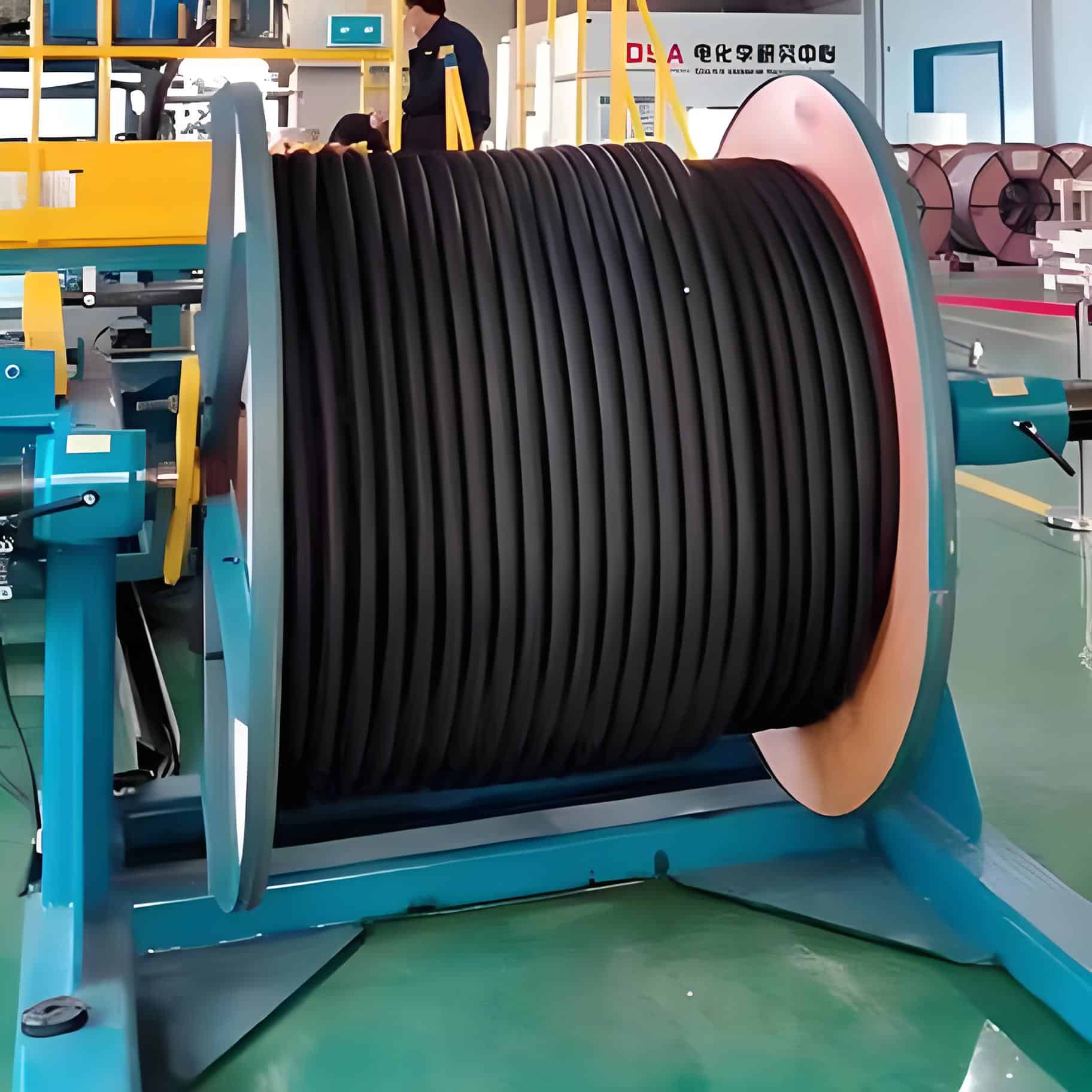

MMO Anode Wire
Flexible anodes for pipeline interiors, tank internals and water heater CP, replacing magnesium rods.
| Diameters | φ1.0 – φ3.0 mm, >100 m/roll |
| Coating | Ru-Ti / Ti-Ta |
| Output | 15 – 100 mA/m |
| Design life | 20 – 40 years |

MMO Anode Strip
Ribbon strips for tank-bottom and groundbed current distribution, supplied in long continuous coils.
| Width | 6.35 / 12.7 mm |
| Thickness | 0.635 / 0.9 mm |
| Coating | Ti-Al |
| Design life | 20 – 50 years |

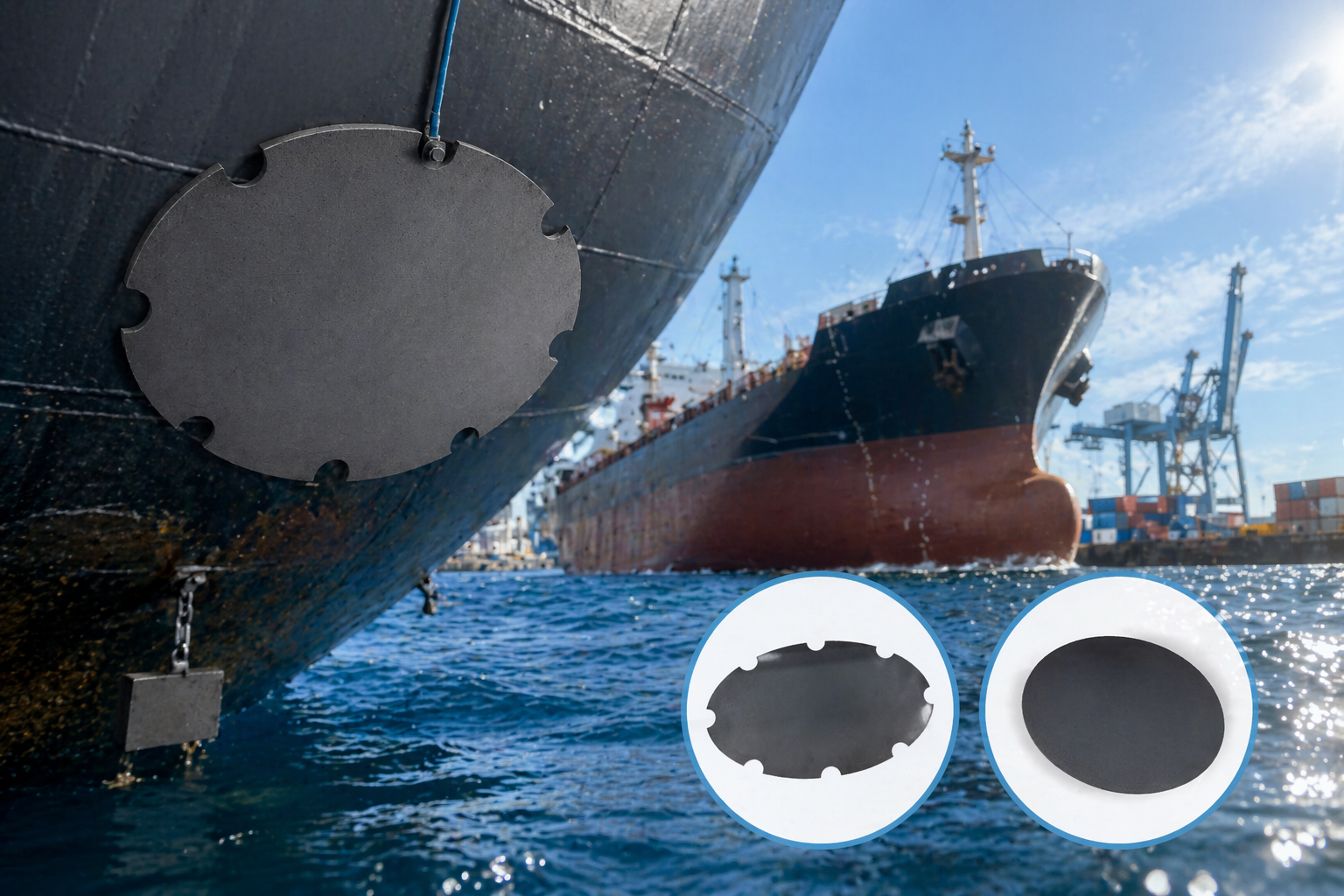

MMO Disc Anode
Compact high-output anodes for ship hulls and offshore ICCP, tolerant of surge currents.
| Diameter | Φ75 – Φ150 mm |
| Coating | Ir-Ta MMO |
| Use | Hull, jetty, platform CP |
| Output | High current per unit area |
| Design life | 20+ years |

MMO Probe Anode
Rigid probe rods for internal tanks, water heaters and vessels — resists turbulence and current reversal.
| Diameter | Φ20 – Φ50 mm |
| Length | 200 – 2000 mm |
| Coating | MMO or Platinum |
| Media | Fresh / brackish / salt water |
| Design life | 20+ years |

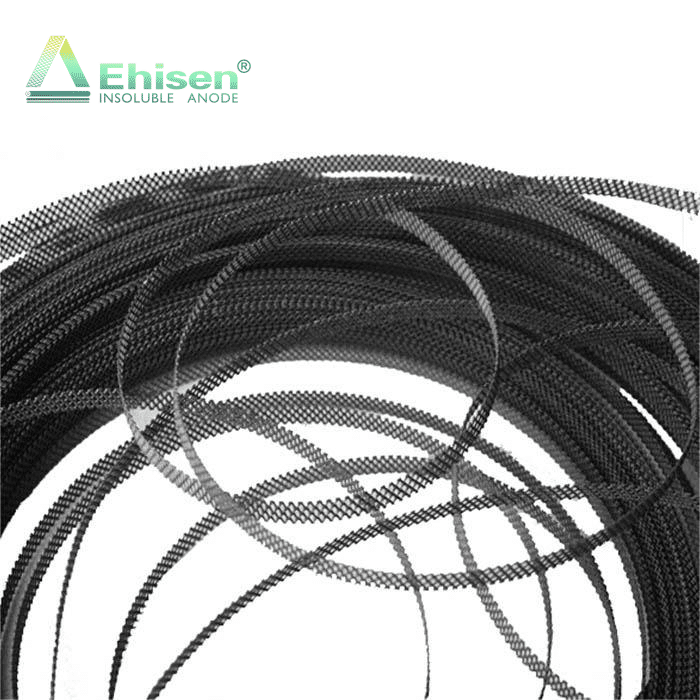

MMO Mesh Anode
Embedded mesh for rebar cathodic protection of bridges, decks and tunnels — distributes current across large concrete areas.
| Roll width | 100 – 400 mm |
| Mesh strip | Optional tie wire included |
| Coating | Ir-Ta MMO |
| Design life | 20 – 50 years |
Standard Dimensions & Output Data
Factory reference tables for the three core CP formats. Freshwater/soil values are rated at 100 A/m²; seawater values at 600 A/m². Other sizes can be customised on request.
| MMO Tubular Anode | Wall (mm) | Length (mm) | Surface (m²) | Freshwater/Soil (A) | Seawater (A) | Life (yrs) |
|---|---|---|---|---|---|---|
| Φ16 mm | 1.0 | 1000 | 0.05 | 5 | 30 | 20–30 |
| Φ19 mm | 1.0 | 1000 | 0.06 | 6 | 36 | 20–30 |
| Φ25 mm | 1.0 | 1000 | 0.08 | 8 | 48 | 20–30 |
| Φ32 mm | 1.0 | 1000 | 0.10 | 10 | 60 | 20–30 |
| MMO Anode Wire | Length (m) | Current Output (mA/m) | Life (yrs) | Application |
|---|---|---|---|---|
| φ1.0 / 1.5 / 2.0 / 3.0 mm | >100 / roll | 15–100 | 20–40 | Storage tanks · gas stations |
| MMO Anode Strip | Thickness (mm) | Length (m) | Current Output (mA/m) | Life (yrs) | Application |
|---|---|---|---|---|---|
| 6.35 mm wide | 0.635 | 152 | 17 / 34 / 43 | 20–50 | Storage tank bottoms |
| 12.7 mm wide | 0.9 | 152 | 86 | 20–50 | Storage tank bottoms |
Documented Quality for Global CP Projects
Every CP anode ships with traceable material, coating and testing records aligned to ISO-style quality management.
Quality Management
All production runs under a certified quality management system with full batch traceability.
Material Certificates
Titanium substrate to ASTM B338 / B863 / B265 Gr1 with chemical and mechanical traceability.

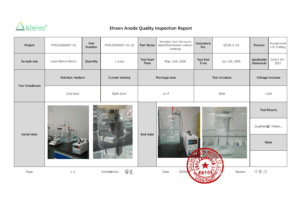

Accelerated Life Test
Performance verified per NACE TM0108-2008 at 10,000 – 20,000 A/m² under rated conditions.
Independent Testing
Third-party reports available on request for coating thickness, adhesion and precious-metal loading.
Coating Inspection
Thickness, adhesion and electrochemical verification recorded per batch and per order.
Project Documentation
Certificate of conformity, packing list and inspection records prepared for export and audits.

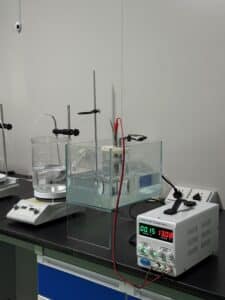

ALT Conditions per NACE TM0108-2008
Lifetime is verified by accelerated life testing — not field wait. We test at elevated current density and temperature, then convert the data to your operating rating.
| Coating System | Medium | Current Density (A/m²) | Temperature (°C) |
|---|---|---|---|
| Titanium-Aluminium | 1 mol/L Na₂SO₄ | 10,000 | 25 ± 5 |
| Titanium-Manganese | 1 mol/L H₂SO₄ | 20,000 | 40 ± 5 |
Specs That Protect Steel for Decades
CP Design Life
Stable MMO coating–substrate interface engineered for continuous impressed-current duty.
Rated Current Density
Sustains high anode current for pipelines, marine structures and tank farms.
Low Consumption
Minimal anode consumption keeps replacements rare and total cost low.
Precious Metal Loading
Ir / Ru loading verified per batch — the loading level is what actually controls anode lifetime.
Frequently Asked Questions About CP Anodes
When should I use MMO titanium anodes instead of sacrificial anodes?
Which coating should I choose: Ru-Ir or Ir-Ta?
Why do cathodic protection anode prices vary so much?
How do I ensure sample quality matches bulk production?
What parameters should I confirm before purchasing CP anodes?
How long do MMO CP anodes last?
Can you supply pre-packaged canisters and anode strings?
What current density should I design at?
What documents do you provide for export projects?
Do you provide samples before a bulk order?
What is the lead time for CP anode orders?
How many anodes do I need for my project?
Need the Right CP Anode for Your Structure?
Send us your protection requirements — soil resistivity, water type, structure, current demand and expected life — and our engineers will recommend the correct coating, geometry and system within 24 hours.
Talk to an Engineer Email UsTell Us About Your CP Project
Complete the fields below and send — your requirements will open in WhatsApp so our engineers can reply directly.
Explore More Industry Solutions
The Complete Impressed-Current System
ICCP is a system, not a single product. Every component below works together to hold your structure at a protected potential — and Ehisen supplies the anode and cable core of it.
Rectifier & Controller
Converts AC mains to DC and drives current through the anode circuit. Constant-potential or constant-current control maintains the target protection level automatically.
MMO Titanium Anodes
The current-discharging element — tubular, disc, strip, wire or mesh format with Ir-Ta / Ru-Ir / Ti-Al coatings rated to your environment and design life.
Reference Electrodes
Cu/CuSO₄ or Ag/AgCl cells measure the structure-to-electrolyte potential so the rectifier knows how much current to deliver.
CP Cables & Junction Boxes
Dedicated YJV or PVDF/HMWPE-insulated cables and junction boxes distribute current to each anode and return to the rectifier with low voltage drop.
Canisters & Coke Breeze
Pre-packaged canisters with conductive coke backfill lower anode-to-soil resistance and extend groundbed life for deep and shallow installations.
Test Stations & Monitoring
Test posts and remote-monitoring units let operators read structure potential and current output on demand — proving protection year after year.
From Site Survey to Commissioning
A CP project follows a proven four-stage sequence. Ehisen supports you in every stage with engineering input and documented hardware.
Site Survey & Design
Soil resistivity, water chemistry, coating condition and current demand are assessed, then anode geometry, quantity and rating are calculated for the design life.
Fabrication & QC
Anodes, cables and canisters are manufactured with batch traceability, coating inspection and accelerated life testing per NACE TM0108-2008.

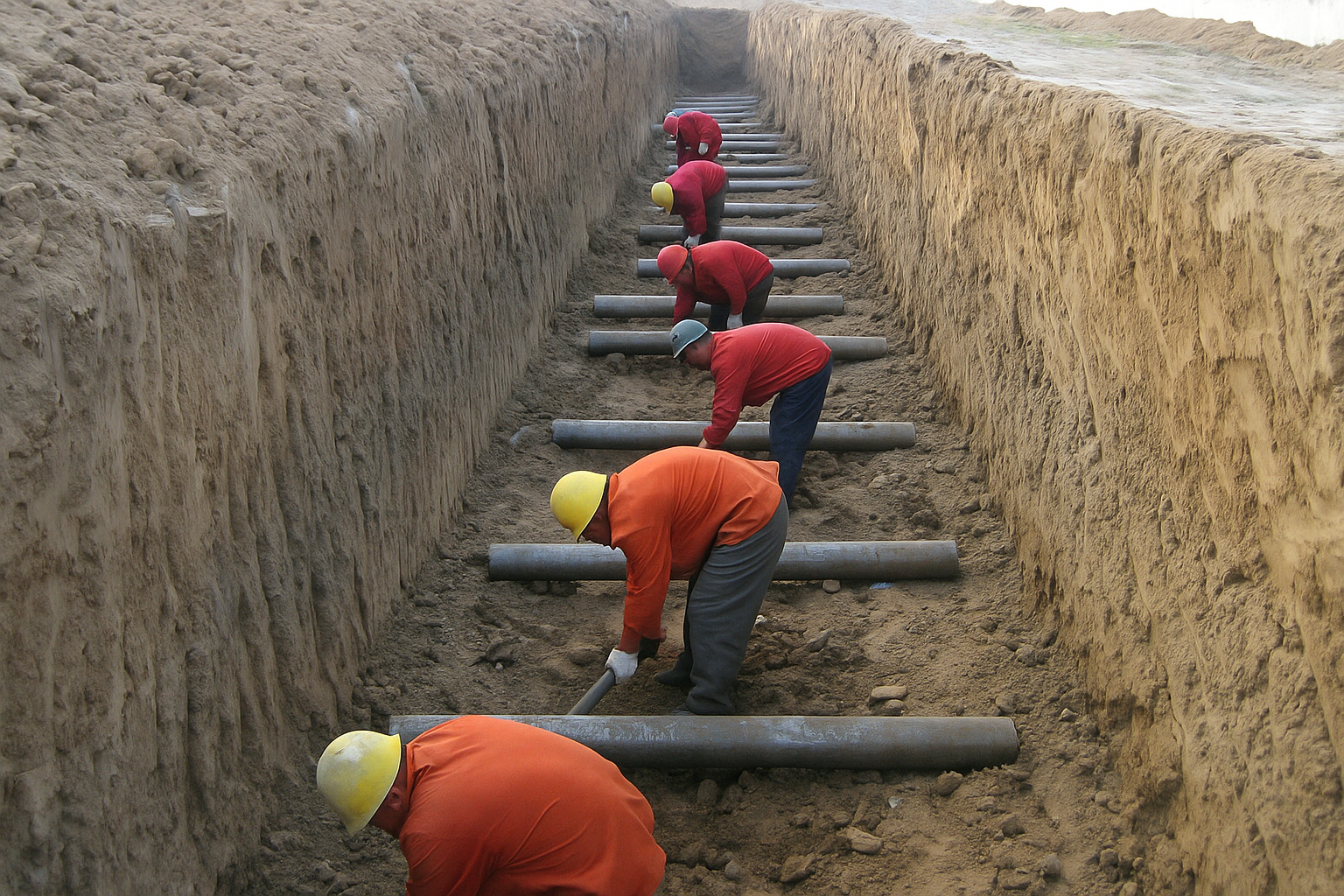

Installation & Backfill
Groundbeds are drilled or excavated, anodes positioned with correct spacing, backfilled with coke breeze and connected with rated cables.
Commissioning & Monitoring
Potential readings are taken, rectifier output tuned, and test stations / monitoring installed so protection is verified and maintained over the asset life.
A Manufacturing Partner, Not Just an Anode Supplier
Buyers choose Ehisen because coating consistency, traceability and engineering response decide how long a CP anode really lasts — not just the catalogue price.
Controlled Coating
Coating applied on our own production line with a fixed formulation and controlled loading tolerance — samples and bulk runs are made to the same standard.
Full Traceability
Every batch carries a LOT number linking substrate material, coating process records, inspection results and shipping documents.
Life-Test Verified
Accelerated life testing per NACE TM0108-2008 at 10,000–20,000 A/m² converts laboratory hours into your operating rating.
Engineering Support
Our engineers review soil resistivity, electrolyte and current demand, then recommend coating, geometry and quantity — within 24 hours.
Global Logistics
Export experience across 40+ countries with complete documentation: MTC, coating reports, inspection records, certificate of conformity.
Reliable Delivery
Production planned against your project schedule, with order status updates from coating to packing list.
From Your Enquiry to Delivered Anodes
A clear, three-step process keeps every CP order on specification and on schedule.
Send Requirements
Share your application, environment, current demand and target life via WhatsApp or email — or send a drawing and we will extract the parameters.
Engineering Review
Within 24 hours you receive a recommendation: anode format, coating system, dimensions, quantity and the supporting calculation basis.
Fabrication & Shipment
After approval, production runs with batch QC, then ships with the full document pack: MTC, coating report, ALT data and packing list.
