In the manufacturing of titanium anodes, the subsequent processing methods for precious metal coatings—such as brush coating, electroplating, and Physical Vapor Deposition (PVD)—directly dictate the requirements and techniques for surface pre-treatment. As a buyer, you may wonder: what specific pre-treatment requirements do these different coating processes entail? How can you ensure that surface pre-treatment is perfectly aligned with subsequent processing to guarantee the highest quality? This article will take an in-depth look at the influence of three coating methods on surface pre-treatment and provide actionable solutions to ensure optimal outcomes.
Relationship Between Surface Pre-Treatment and Coating Processes
The success of any titanium anode coating depends heavily on the precision and thoroughness of surface pre-treatment. Different coating methods—brush coating, electroplating, and Physical Vapor Deposition (PVD)—have unique requirements that must be met to ensure optimal performance, durability, and uniformity of the coatings. Below, we delve deeper into the pre-treatment focuses, monitoring points, and the measures we employ to achieve excellence in each process.

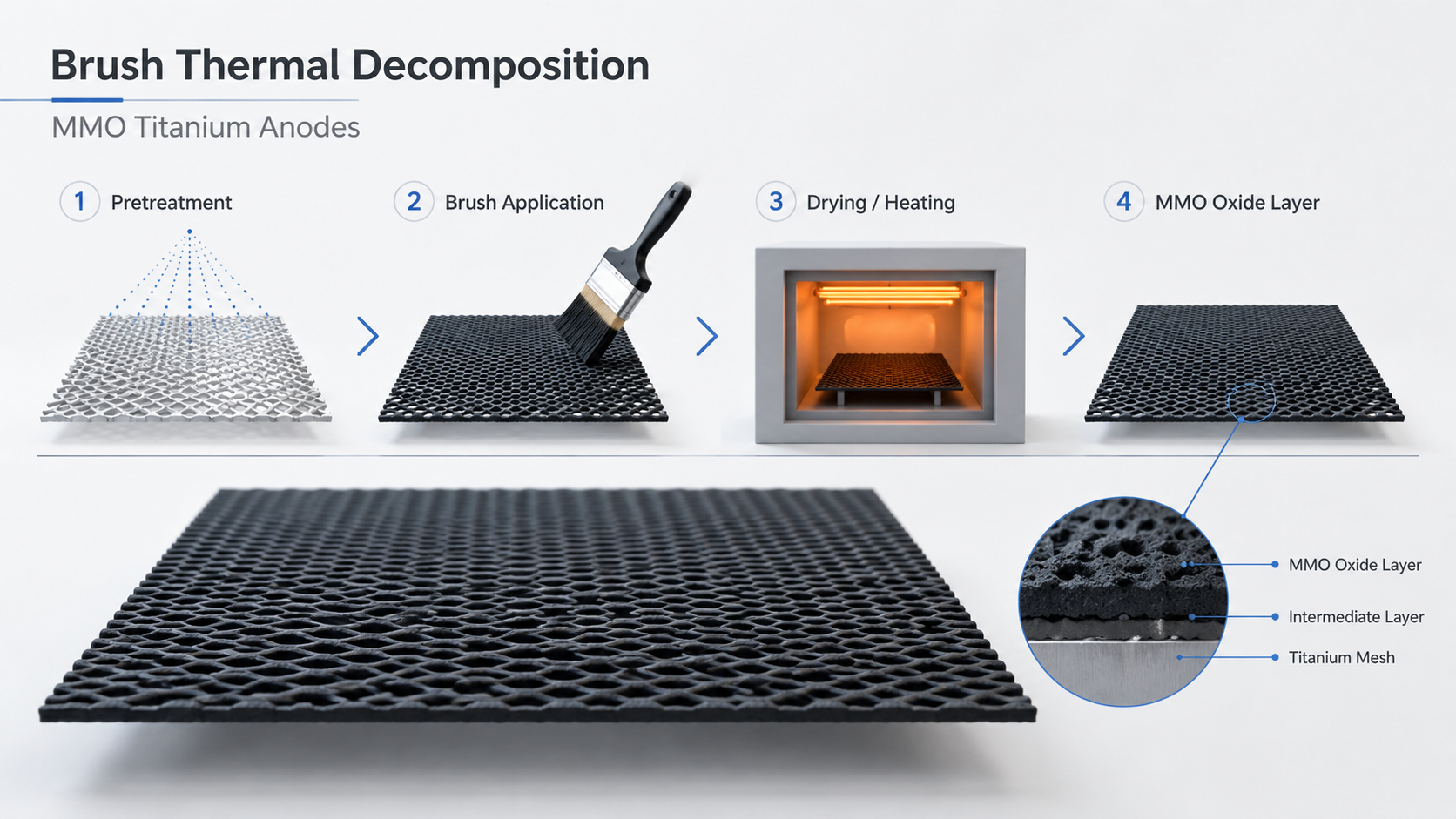

Brush Coating (Thermal Decomposition Method)
Brush coating is a process where a solution of precious metal compounds is applied to the titanium substrate. The coated substrate is then subjected to high temperatures to thermally decompose the solution into a dense and adherent coating. This method is widely used for coatings involving iridium, ruthenium, or similar metals.
Key Pre-Treatment Focus:
- Removal of Oil Stains and Particulates: Any residual oil, grease, or particulates on the substrate can interfere with coating adhesion, leading to defects such as peeling or uneven coverage during the high-temperature decomposition stage.
- Achieving Uniform and Moderate Surface Roughness: The surface roughness must be balanced carefully. A surface that is too smooth may not provide sufficient mechanical interlocking for the coating to adhere properly, while a surface that is excessively rough can lead to uneven coating distribution or excessive material consumption.
What You Need to Monitor:
- Is the surface completely free of oil, grease, and particulates? Ensuring that the substrate is free from contamination is critical. Residual contaminants can compromise the integrity of the thermal decomposition process, leading to substandard coatings.
- Is the roughness consistent and within acceptable limits? The surface must have a controlled roughness between 0.8–1.2 μm to strike the perfect balance between adhesion and uniformity.
Our Commitment: We employ advanced ultrasonic cleaning systems to remove every trace of grease and particulates from the substrate. Ultrasonic waves penetrate even the smallest crevices, ensuring complete decontamination. Following cleaning, precise sandblasting techniques are used to achieve the desired surface roughness. We maintain strict controls to ensure that every substrate has a uniform and optimized texture for brush coating.
Electroplating (Electrodeposition Method)
Electroplating involves the use of an electrochemical process to deposit a precious metal coating onto the titanium substrate. This method is ideal for producing coatings with uniform thickness, such as platinum-coated anodes.
Key Pre-Treatment Focus:
- Removal of the Oxide Layer: Oxide layers on titanium substrates act as barriers to electrical conductivity. If not fully removed, they can result in poor current distribution during electroplating, leading to defects such as uneven coating or voids.
- Ensuring Consistent Conductivity Across the Substrate: Consistent conductivity is essential to achieving an even electroplating layer. Variations in surface conductivity can cause irregularities in the thickness and quality of the deposited metal.
What You Need to Monitor:
- Has the oxide layer been fully eliminated? Even minor traces of the oxide layer can disrupt the electroplating process, so complete removal is non-negotiable.
- Is the conductivity of the substrate uniform? Uniform conductivity ensures that the current flow during electroplating is evenly distributed across the entire substrate.
Our Commitment: We use a highly effective HF+HNO₃ acid mixture for acid etching, ensuring that oxide layers are thoroughly removed without damaging the substrate. This acid mixture not only removes oxides but also prepares the titanium surface for superior adhesion. Post-acid treatment, we conduct rigorous conductivity tests on the substrate to ensure that current distribution will be uniform during electroplating. This guarantees that the precious metal coating is flawless, continuous, and evenly thick.

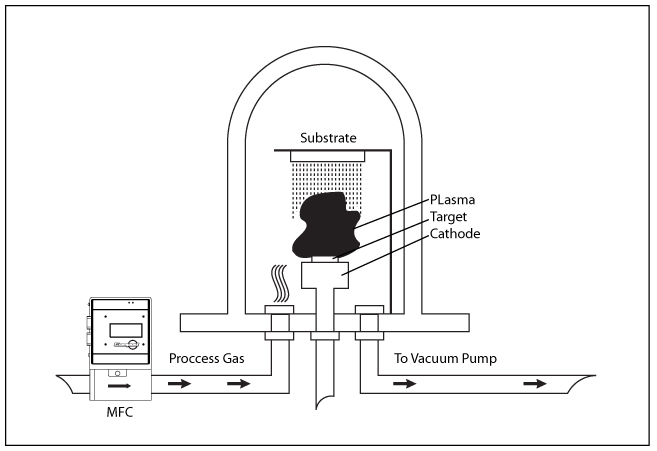

Physical Vapor Deposition (PVD)
PVD is a vacuum-based coating process where precious metals are vaporized and deposited onto the titanium substrate. This technique is highly favored for creating coatings that are exceptionally uniform, durable, and corrosion-resistant.
Key Pre-Treatment Focus:
- Ultra-Cleanliness: The substrate must be entirely free of particulates, organic residues, and other contaminants. Any impurities on the surface can disrupt the PVD process, leading to defects in the coating.
- Surface Smoothness: A perfectly smooth substrate surface ensures that the deposited coating is uniform and free from imperfections. Irregularities on the surface can amplify micro-defects, reducing the overall performance and longevity of the coating.
What You Need to Monitor:
- Is the surface entirely clean, free of particulates and organic residues? Any contamination on the substrate can lead to uneven deposition or weak points in the coating.
- Is the surface sufficiently smooth? Surface smoothness is crucial for achieving a flawless coating. Visible scratches, pits, or irregularities can compromise the coating’s integrity.
Our Commitment: To meet the stringent cleanliness requirements of PVD, we utilize multi-stage cleaning processes. This includes degreasing, rinsing, and ultrasonic cleaning steps, ensuring that no contaminants remain on the substrate. Following cleaning, we perform fine polishing to eliminate surface irregularities and achieve a mirror-like finish. Every substrate is tested for cleanliness to meet microparticle-level standards, ensuring that it is ready for defect-free PVD processing.
Advanced Surface Treatment Techniques and Quality Control
In high-demand applications, standard single-stage surface treatments may fall short of meeting the rigorous quality standards required for optimal coating performance. To address this, we employ advanced surface treatment techniques that ensure the highest substrate quality, tailored specifically to the demands of each coating process. Below is a detailed breakdown of the techniques we use and the quality control measures we implement to guarantee exceptional results.
Sequential Sandblasting: A Dual-Stage Process for Optimal Surface Preparation
Achieving the right surface texture is essential for coating adhesion and uniformity. To this end, we utilize a two-step sandblasting approach that combines water blasting and dry blasting for superior results.
- Water Blasting: Removing Coarse Impurities
- Water blasting is the first stage of the process, designed to eliminate large surface impurities such as dust, dirt, and loose particles.
- The use of water as a medium minimizes the risk of embedding abrasive particles into the substrate, ensuring a cleaner base for subsequent treatments.
- This step not only cleans but also reduces surface temperature, which can prevent micro-cracks and other thermal stress-related defects.
- Dry Blasting: Refining Surface Roughness
- Following water blasting, dry blasting is used to fine-tune the surface texture. Abrasive materials are propelled at the substrate under controlled conditions to achieve a uniform and optimal roughness.
- This step adjusts the surface profile to enhance mechanical interlocking and adhesion for subsequent coatings.
- By carefully selecting abrasive materials and controlling blasting parameters, we ensure consistency and avoid over-roughening the surface.
The combination of water and dry blasting delivers a substrate surface that is both clean and perfectly textured, ready to meet the requirements of any coating process.
Post-Acid Washing and Inspection
and Inspection: Ensuring a Defect-Free Substrate
After acid etching, the substrate undergoes thorough rinsing to remove all residual chemicals and ensure the formation of a clean and uniform surface. This step is critical, as even trace amounts of residual acids can lead to defects during the coating process.
- Comprehensive Rinsing
- The substrates are rinsed with copious amounts of water to eliminate any acid residues. This ensures that no harmful chemicals remain, which could otherwise react negatively during coating.
- The rinsing process is closely monitored to ensure complete removal of oxides, salts, and other byproducts.
- Visual and Color Inspection
- Once the substrate dries, we carefully inspect its surface appearance. A properly treated substrate should exhibit a uniform deep gray color.
- Warning Signs: A shiny surface indicates incomplete acid treatment, while blue spots on welds suggest improper hydride layer formation. Both issues require immediate reprocessing to ensure the substrate meets quality standards.
By taking these precautions, we ensure that every substrate is free of defects, providing an ideal foundation for high-quality coatings.
Removal of Deposits: Addressing Common Issues Proactively
Residual deposits on the substrate surface, such as brown stains, can significantly impair coating performance. These deposits typically indicate incomplete acid rinsing and require immediate attention.
- Identifying Problem Areas
- Our inspection process flags any surface discoloration or staining, such as brown or rusty-looking deposits, which are clear indicators of acid residue.
- Common causes include insufficient rinsing or improper acid application during the etching process.
- Secondary Cleaning for Perfection
- To address these issues, we perform a secondary cleaning step that involves targeted rinsing and brushing to remove any remaining deposits.
- In cases of stubborn residue, additional acid washing may be conducted, followed by a more thorough rinsing process.
By eliminating these deposits, we prevent potential issues such as poor coating adhesion, uneven deposition, or long-term degradation of the coating.
Comprehensive Inspection: A Critical Step Before Moving Forward
Inspection is the cornerstone of our quality control process, ensuring that the substrate is in perfect condition before proceeding to the coating stage. Our inspection protocols are designed to catch even the smallest imperfections.
- Uniformity Check
- We inspect the substrate for consistent surface roughness and texture, ensuring that it meets the specific requirements of the intended coating process.
- Any irregularities in roughness are corrected through additional surface treatments.
- Color and Finish Assessment
- The substrate’s color is evaluated to confirm proper acid treatment and rinsing. Variations in color may indicate underlying issues that need to be addressed.
- The finish is checked for smoothness, ensuring there are no visible scratches, pits, or irregularities that could compromise coating performance.
- Documentation and Approval
- Each substrate is meticulously documented during the inspection process, with findings recorded for quality assurance.
- Only substrates that pass all inspection criteria are approved for the next stage of processing, ensuring that every product meets our stringent quality standards.
Why These Steps Matter
Advanced surface treatment and meticulous quality control are not just additional steps; they are essential for producing high-performance coatings that meet the demands of modern applications. By addressing potential issues proactively and ensuring the highest level of substrate preparation, we provide our clients with reliable and durable coating solutions.
Whether it’s achieving the perfect surface roughness, removing harmful deposits, or ensuring uniformity and cleanliness, our techniques are designed to eliminate risks and deliver exceptional results. Through our commitment to precision and quality, we help our clients achieve unparalleled success in their projects.
Supplier Capabilities and Process Transparency: Ensuring Control and Reliability at Every Step
When selecting a titanium anode supplier, procurement professionals prioritize the supplier’s technical capabilities and process transparency. A reliable supplier must not only possess advanced production equipment but also implement a comprehensive quality management system to ensure that every step of the manufacturing process is controlled, transparent, and fully traceable. Below, we highlight the key aspects of supplier capabilities and process transparency, along with Ehisen’s solutions for addressing these critical requirements.
Key Considerations When Evaluating a Supplier
1. Does the supplier have the necessary professional equipment and technical expertise?
- Are specialized surface treatment tools in use? Equipment like ultrasonic cleaning systems, precision sandblasting machines, and high-efficiency acid etching systems are essential for ensuring consistent, high-quality surface treatment.
- Can the supplier customize treatments for different coating methods? Each coating process, whether brush coating, electroplating, or PVD, has unique requirements. A capable supplier should provide tailored pre-treatment solutions to meet these specific needs.
2. Is the process workflow clear and transparent?
- Are critical parameters documented? Key process parameters, such as cleaning time, sandblasting grit size, acid concentration, and drying conditions, should be meticulously recorded to ensure consistency and reproducibility.
- Can the processing status and parameters be monitored in real-time? Suppliers should offer access to real-time data or detailed process logs so that customers can monitor progress and verify compliance with quality standards.
3. How is batch-to-batch consistency guaranteed?
- Is there a strict quality management system in place? Certification under standards such as ISO 9001 demonstrates a supplier’s commitment to rigorous quality control.
- Are there established testing protocols? Whether through sampling or 100% batch inspection, suppliers must have standardized processes for verifying product quality.
4. Are processing records traceable?
- Can the root cause of issues be identified quickly? Comprehensive records should enable suppliers to trace any problems back to their source and implement swift corrective actions.
- Is a detailed quality report available to customers? Suppliers should provide thorough documentation, including roughness (Ra values), acid concentrations, drying temperatures, and other critical parameters, to ensure transparency and build trust.
Ehisen’s Capabilities and Commitments
At Ehisen, we take pride in our ability to meet and exceed the expectations of our clients. Here’s how we address the critical concerns outlined above:
1. High-Precision Equipment Support
- Advanced Surface Treatment Systems: We use state-of-the-art equipment, such as ultrasonic cleaning systems, automated sandblasting machines, and high-efficiency acid etching units, to deliver consistent and precise surface treatments.
- Customized Solutions for Coating Methods: Whether you require pre-treatment for brush coating, electroplating, or PVD, our team tailors the process to meet the specific demands of your application. This ensures compatibility and optimal performance in every case.
2. Comprehensive Process Documentation and Transparent Management
- Detailed Process Records: For every production batch, we maintain a complete record of all process parameters, including cleaning durations, sandblasting specifications, acid concentrations, and drying conditions.
- Accessible Data: Customers can request these records at any time to review the steps taken during production. This level of transparency fosters trust and confidence in the quality of the final product.
3. Rigorous Quality Control
- Certified Quality Management: Our ISO 9001-certified quality management system ensures that every stage of production is meticulously monitored by trained professionals. From raw material inspection to final product testing, every step is under strict control.
- Comprehensive Testing: Before shipment, all products undergo thorough testing for surface roughness, cleanliness, and coating thickness. These tests ensure that every batch is consistent and meets our high standards.
4. Traceability for Fast Issue Resolution
- Unique Batch Identification: Every product batch is assigned a unique identifier, allowing us to track the entire production process from start to finish. This enables quick identification and resolution of any issues that may arise.
- Detailed Quality Reports: We provide clients with comprehensive reports that include critical measurements, such as surface roughness (Ra values), acid concentrations, and drying temperatures. These reports are designed to give customers confidence in the quality of their products.
5. Customizable Solutions to Meet Your Needs
- Tailored Parameters: We adjust key process parameters to match your specific requirements, ensuring that the treated titanium substrates are perfectly suited to your application.
- Flexibility in Production Volumes: Whether you need small-batch prototypes or large-scale production, we deliver consistent quality and performance at every scale.
Case Study: How Transparent Processes Helped a Client Reduce Risk
A client in the electrochemical industry required titanium anodes with specific coating thickness and uniformity. By collaborating with us, they received not only tailored acid etching and sandblasting solutions but also complete process transparency through detailed parameter records. Our ability to maintain consistency and provide visibility into every step of the production process gave the client confidence in scaling up to full production. This transparency significantly reduced the risk of defects and rework, saving both time and costs.
Why Choose Ehisen?
- State-of-the-Art Equipment and Customization: Our advanced capabilities allow us to provide the best pre-treatment solutions for a wide range of coating processes.
- Transparent Process Management: Every step is meticulously documented and easily accessible, ensuring complete confidence in the production process.
- Reliable Quality Control System: Our rigorous standards and thorough testing ensure consistent, reliable performance in every batch.
- Quick Response and Support: In the event of an issue, our traceability system enables us to quickly pinpoint and resolve problems, minimizing downtime and costs.
Final Thoughts: Ensuring Success in Titanium Anode Manufacturing
Surface pre-treatment is a critical step in titanium anode manufacturing, and the requirements vary significantly depending on the chosen precious metal coating method. By implementing rigorous quality control measures, multiple inspections, and precise adjustments, we ensure that every titanium substrate meets the highest standards. This approach minimizes the risk of defects and ensures optimal performance in subsequent processes.
If you have any questions about surface treatment or coating for titanium anodes, feel free to contact us. Ehisen is here to provide you with professional, efficient solutions to help your project succeed!
