Precision Development for Superior Performance
At Ehisen, we specialize in advanced coating solutions for titanium anodes, using precisely formulated precious metal solutions. With patented coating technology and a strong R&D capability, we continually optimize coating formulas based on customer feedback, helping to significantly reduce procurement costs. Our titanium anodes, including Iridium-Tantalum, Ruthenium-Iridium, Platinum-Coated, and MMO (Mixed Metal Oxide) anodes, offer exceptional durability, catalytic efficiency, and operational stability. These products are widely used in industries such as hydrogen production, electroplating, water treatment, and cathodic protection. We work closely with customers to advance coating technologies, delivering cost-effective and reliable electrochemical solutions.
MMO Disc Anode
The MMO disc anode is a specialized cathodic protection device designed for optimal corrosion resistance. It features a disc shape and is reinforced with a mixed metal oxide coating that delivers a controlled electrical current to protect adjacent metal infrastructure. Mainly used in marine, oil and gas fields, its main application is to protect ships. This ensures asset longevity and operational efficiency, making it an indispensable tool for industry professionals.
MMO Cathodic Protection Anode Wire
MMO anode wire is mainly used for the production of flexible anodes, cathodic protection of pipeline interiors, and cathodic protection of water heater tanks. Flexible anodes are widely used as auxiliary anodes in impressed current cathodic protection systems for buried pipelines, storage tanks, and other buried metal structures. Titanium anode wire for water heaters is primarily used for the cathodic protection of water heater tanks and is the next-generation anode product replacing the sacrificial anode "magnesium rod."
MMO Titanium Probe Anodes
MMO Titanium Probe Anodes consist of a titanium rod coated with a mixed metal oxide or platinum coating. The probe anode can withstand water turbulence without damage, the coating is not affected by sudden current reversals, and can be exposed to high current overloads for initial structural polarization without damage to the anode. They have been found to be resistant to acid attack and provide excellent protection in fresh, salt or salt water. They are available in a variety of sizes and configurations.
MMO Tubular Anodes
MMO tubular anodes are a corrosion protection device used in a variety of industries. It is a tubular structure coated with a durable MMO, usually iridium tantalum (IrO2 / Ta2O5) or iridium ruthenium (IrO2 / RuO2). Their purpose is to prevent corrosion of metal structures such as pipes, tanks and bridges by creating a rust-proof electrochemical reaction, thus extending the service life of equipment. They are known for their durability, low maintenance requirements and cost-effectiveness. They are critical to protecting critical infrastructure.
Precious Metal Coating R&D Laboratory
About Us
Why Choose Ehisen for Precious Metal Coating on Titanium Anodes?
At Ehisen, we specialize in optimizing the precious metal coatings of titanium anodes to meet your specific needs. Here’s how we bring value to your projects:
World-Class Expertise in Electrochemical Coatings
Our technical team, led by Ph.D. graduates in electrochemistry from Japan's Tohoku University, possesses cutting-edge research and development capabilities. This ensures that every coating we design meets the highest standards of performance and reliability.
Tailored Coating Ratios for Optimal Results
Collaborating with a diverse range of domestic and international clients, we refine coating ratios and additives to maximize performance. Many customers have already provided positive feedback on how our custom solutions enhanced their operations.
Precision-Driven Design Based on Your Parameters
By analyzing your specific requirements, we calculate the most suitable coating composition and identify the ideal additives to enhance your anode’s functionality. This ensures precision in every solution we deliver.
Dr. Miao
Technical Director of Ehisen
Spencer Xu
CEO of Ehisen
Academic and Industrial Collaboration
Partnering with prestigious Chinese universities, we actively participate in research projects and leverage advanced laboratory equipment to validate and improve our coatings. This synergy allows us to push the boundaries of innovation and deliver state-of-the-art solutions.
Sustainable Recycling Solutions
We offer precious metal recycling services, extracting valuable materials from used titanium anodes. This capability allows us to produce cost-effective coatings for environments with less stringent performance requirements, reducing costs while promoting sustainability.
Industry Engagement and Continuous Improvement
As active participants in titanium industry alliances, we attend regular summits and forums to stay informed of the latest industry trends. This enables us to remain at the forefront of innovation and share valuable insights with our clients.
Why Understanding Precious Metal Coating Ratios Is Essential for Procurement Professionals
For procurement professionals sourcing titanium anodes, grasping the importance of precious metal coating ratios is a game-changer. These ratios determine not only the performance and lifespan of the anodes but also provide transparency in pricing structures. At Ehisen, we offer detailed guidance on coating composition—whether ruthenium-iridium, iridium-tantalum, or platinum—tailored to specific operating conditions and requirements. By understanding how coating precious metal content and ratios align with your application, you can accurately evaluate quotes, ensure compatibility with your usage scenarios, and confidently assess supplier pricing fairness. This insight empowers informed decision-making and avoids costly mismatches in performance expectations.
Table of Contents
Chapter 1：Titanium Anodes In ICCP Fields
CATHODIC PROTECTION DATA
1. MMO Cathodic Protection Tubular Anode
Features:
- MMO tubular anodes can be directly applied as bare anodes in freshwater or marine environments. When used for the cathodic protection of large marine steel structures, they can be combined to form remote anodes, offering advantages such as easy installation and wide protection coverage. In soil environments, MMO tubular anodes are often used in pre-packaged forms to create shallow or deep well anode beds.
- Pre-Packaged MMO Anode: The external part is the MMO cathodic protection tubular anode, with internal pure copper terminals ensuring conductivity. It is connected to a dedicated cable (YJV or PVDF/HMWPE). The anode is then filled with coke particles to maximize the current output on the anode surface. Finally, it is sealed with epoxy resin. These can be connected in series or parallel with other profiles to form various pre-packaged anode groups.
Product Specifications and Performance
Outer Diameter (mm) Wall Thickness (mm) Length (mm) Surface Area (㎡) Current Output (mA/m) Lifespan (years) 16 1.0 1000 0.05 5 20-30 16 1.0 1000 0.05 30 20-30 19 1.0 1000 0.06 6 20-30 19 1.0 1000 0.06 36 20-30 25 1.0 1000 0.08 8 20-30 25 1.0 1000 0.08 48 20-30 32 1.0 1000 0.1 10 20-30 32 1.0 1000 0.1 60 20-30 Other specifications and sizes can be customized according to customer requirements.
Coating System:
- Ruthenium-Neodymium/Neodymium-Aluminum
Titanium Base Material:
- Tubular material meeting ASTM B338 Gr1 standards.
Chemical Composition：
| Element | Iron (Fe) | Carbon (C) | Nitrogen (N) | Hydrogen (H) | Oxygen (O) | Titanium (Ti) | Others |
|---|---|---|---|---|---|---|---|
| Maximum Content | 0.20% | 0.08% | 0.03% | 0.02% | 0.18% | Balance | 0.40% |
Enhanced Lifespan Test Standard: NACE TM0108-2008
| System | Medium | Current Density (A/m²) | Temperature (°C) |
|---|---|---|---|
| Titanium-Aluminum | 1mol/L Na₂SO₄ | 10000 | 25±5 |
| System | Medium | Current Density (A/m²) | Temperature (°C) |
|---|---|---|---|
| Titanium-Manganese | 1mol/L H₂SO₄ | 20000 | 40±5 |
2.MMO Cathodic Protection Anode Wire
Features:
MMO anode wire is mainly used for the production of flexible anodes, cathodic protection of pipeline interiors, and cathodic protection of water heater tanks. Flexible anodes are widely used as auxiliary anodes in impressed current cathodic protection systems for buried pipelines, storage tanks, and other buried metal structures. Titanium anode wire for water heaters is primarily used for the cathodic protection of water heater tanks and is the next-generation anode product replacing the sacrificial anode “magnesium rod.”
Product Specifications and Performance:
| Diameter (mm) | Length (m) | Current Output (mA/m) | Lifespan (years) | Application Scenarios |
|---|---|---|---|---|
| φ1.0 | >100/roll | 15-100 | 20-40 | Storage tanks, gas stations |
| φ1.5 | >100/roll | 15-100 | 20-40 | Storage tanks, gas stations |
| φ2.0 | >100/roll | 15-100 | 20-40 | Storage tanks, gas stations |
| φ3.0 | >100/roll | 15-100 | 20-40 | Storage tanks, gas stations |
- *Other specifications and sizes can be customized according to customer requirements.
Coating System:
- Ruthenium-Titanium/Titanium-Tantalum
Titanium Base Material:
- Wire material meeting ASTM B863 Gr1 standards.
Chemical Composition Iron (Fe) Carbon (C) Nitrogen (N) Hydrogen (H) Oxygen (O) Titanium (Ti) Others Maximum Content 0.20% 0.08% 0.03% 0.02% 0.18% Balance 0.40%
Enhanced Lifespan Test Standard: NACE TM0108-2008:
| System | Medium | Current Density (A/m²) | Temperature (°C) |
|---|---|---|---|
| Titanium-Tantalum | 1mol/L Na₂SO₄ | 10000 | 25 ± 5 |
| System | Medium | Current Density (A/m²) | Temperature (°C) |
|---|---|---|---|
| Ruthenium-Titanium | 1mol/L H₂SO₄ | 20000 | 40 ± 5 |

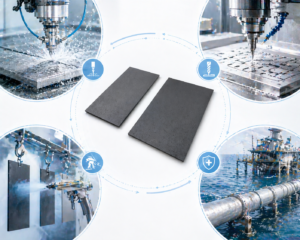

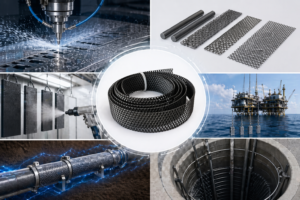

3. MMO Cathodic Protection Anode Strip
Features:
- MMO strip anodes are widely used in the cathodic protection of the external bottom plates of storage tanks. The MMO strip anodes are spot-welded with titanium conductive strips to form an anode grid, which is then buried in the sand cushion layer at the bottom of the storage tank.
Product Specifications and Performance:
| Width (mm) | Thickness (mm) | Length L (m) | Current Output (mA/m) | Lifespan (years) | Application Scenarios |
|---|---|---|---|---|---|
| 6.35 | 0.635 | 152 | 17 | 20-50 | Storage tanks |
| 6.35 | 0.635 | 152 | 34 | 20-50 | Storage tanks |
| 6.35 | 0.635 | 152 | 43 | 20-50 | Storage tanks |
| 12.7 | 0.9 | 152 | 86 | 20-50 | Storage tanks |
Coating System:
- Titanium-Aluminum Coating
Titanium Base Material: Strip material meeting ASTM B265 Gr1 standards.
| Chemical Composition | Iron (Fe) | Carbon (C) | Nitrogen (N) | Hydrogen (H) | Oxygen (O) | Titanium (Ti) | Others |
|---|---|---|---|---|---|---|---|
| Maximum Content | 0.20% | 0.08% | 0.03% | 0.02% | 0.18% | Balance | 0.40% |
Enhanced Lifespan Test Standard:NACE TM0108-2008
| System | Medium | Current Density (A/m²) | Temperature (°C) |
|---|---|---|---|
| Titanium-Aluminum | 1mol/L Na₂SO₄ | 10000 | 25±5 |
4.MMO Titanium Probe Anodes
Features:
- MMO Titanium Probe Anodes consist of a titanium rod coated with a mixed metal oxide or platinum coating. The probe anode can withstand water turbulence without damage, the coating is not affected by sudden current reversals, and can be exposed to high current overloads for initial structural polarization without damage to the anode. They have been found to be resistant to acid attack and provide excellent protection in fresh, salt or salt water. They are available in a variety of sizes and configurations.
Product Specifications and Performance:
Diameter (mm) Length (mm) Surface Area (㎡) Current Output (mA/m) Lifespan (years) 12 1000 0.04 4 20 12 1000 0.04 24 20 20 1000 0.06 6 20 20 1000 0.06 36 20
*Other specifications and sizes can be customized according to customer requirements.
Coating System:
- Ruthenium-Iridium/Iridium-Tantalum
Titanium Base Material:Plate material meeting ASTM B338 Gr1 standards.
Chemical Composition
| Element | Iron (Fe) | Carbon (C) | Nitrogen (N) | Hydrogen (H) | Oxygen (O) | Titanium (Ti) | Others |
|---|---|---|---|---|---|---|---|
| Maximum Content | 0.20% | 0.08% | 0.03% | 0.02% | 0.18% | Balance | 0.40% |
Enhanced Lifespan Test Standard: NACE TM0108-2008
| System | Medium | Current Density (A/m²) | Temperature (°C) |
|---|---|---|---|
| Iridium-Tantalum | 1mol/L Na₂SO₄ | 10000 | 25±5 |
| System | Medium | Current Density (A/m²) | Temperature (°C) |
|---|---|---|---|
| Ruthenium-Iridium | 1mol/L H₂SO₄ | 20000 | 40±5 |

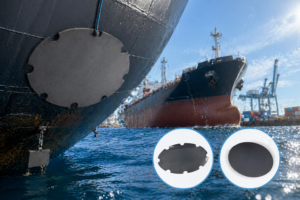

5.MMO Disc Anode
Features:
- The MMO disc anode is a specialized cathodic protection device designed for optimal corrosion resistance. It features a disc shape and is reinforced with a mixed metal oxide coating that delivers a controlled electrical current to protect adjacent metal infrastructure.
Mainly used in marine, oil and gas fields, its main application is to protect ships. This ensures asset longevity and operational efficiency, making it an indispensable tool for industry professionals.
Product Specifications and Performance
Diameter (mm) Thickness (mm) Current Output (mA/m) Lifespan (years) 100 2.0-5.0 5 20 270 2.0-5.0 35 20 320 2.0-5.0 49 20 458 2.0-5.0 99 20
*Other specifications and sizes can be customized according to customer requirements.
Coating System:
- Ruthenium-Boron/Boron-Aluminum.
Titanium Base Material: Plate material meeting ASTM B265 Gr1 standards.
Chemical Composition
| Element | Iron (Fe) | Carbon (C) | Nitrogen (N) | Hydrogen (H) | Oxygen (O) | Titanium (Ti) | Others |
|---|---|---|---|---|---|---|---|
| Maximum Content | 0.20% | 0.08% | 0.03% | 0.02% | 0.18% | Balance | 0.40% |
Enhanced Lifespan Test Standard: NACE TM0108-2008
| System | Medium | Current Density (A/m²) | Temperature (°C) |
|---|---|---|---|
| Boron-Aluminum | 1mol/L Na₂SO₄ | 10000 | 25±5 |
| System | Medium | Current Density (A/m²) | Temperature (°C) |
|---|---|---|---|
| Ruthenium-Boron | 1mol/L H₂SO₄ | 20000 | 40±5 |
Product Application
Titanium anodes are widely used in cathodic protection systems to prevent corrosion of metal structures. Here’s how they function in various applications:
1.Protection of Water Heater Storage Tanks
Titanium anodes are installed inside water heater tanks to protect the inner surfaces from corrosion.
They act as sacrificial anodes, corroding in place of the tank material (usually steel), thereby extending the lifespan of the tank.
The anodes are often coated with mixed metal oxides (MMO) to enhance their efficiency and durability in high-temperature and aggressive water environments.
2. Hull, Pipeline, Platform, Dock, Dam, and Power Station Cooling Water System Inlets
In marine environments, titanium anodes are used to protect submerged structures such as ship hulls, offshore platforms, and docks.
They are connected to an impressed current cathodic protection (ICCP) system, where an external power source drives the anodes to release current, counteracting the corrosion process on the metal surfaces.
The anodes are particularly effective in seawater due to their high conductivity and resistance to chloride-induced corrosion.
3. Internal Protection of Oil Storage Tanks, Condensers, Pipelines, and Heat Exchangers
Inside oil storage tanks and pipelines, titanium anodes are used to protect against internal corrosion caused by aggressive fluids or gases.
In condensers and heat exchangers, the anodes prevent corrosion of metal surfaces exposed to cooling water or other corrosive media.
The anodes are often pre-packaged with conductive materials like coke breeze to ensure uniform current distribution and maximize protection.
4. Metal Protection for Buried Structures (Carbon-Containing Soil)
For buried structures such as pipelines or storage tanks, titanium anodes are installed in anode beds (shallow or deep) to provide cathodic protection.
The anodes are connected to an impressed current system, which generates a protective current that flows through the soil to the metal structure, preventing corrosion.
Titanium anodes are preferred in carbon-containing soils due to their high durability and resistance to chemical degradation.
Key Advantages of Titanium Anodes in Cathodic Protection:
In titanium cutting processes, preventing material damage and minimizing heat-affected zones (HAZ) are crucial for ensuring product quality. Below are some common issues encountered during cutting and their corresponding solutions:
High Corrosion Resistance: Titanium’s natural oxide layer makes it highly resistant to corrosion, even in aggressive environments.
Long Lifespan: Titanium anodes, especially those coated with MMO, have a significantly longer lifespan compared to traditional sacrificial anodes.
Efficiency: They provide consistent and reliable current output, ensuring effective protection over large areas.
Versatility: Titanium anodes can be customized in various shapes and sizes to suit specific applications, from small water heaters to large marine structures.
Select Appropriate Cutting Methods: Use non-thermal methods such as waterjet cutting or wire EDM to avoid HAZ.
Optimize Cutting Parameters: Lower cutting power and increase speed to reduce heat concentration.
Use Cooling Techniques: Introduce water or air cooling during cutting to lower surface temperatures.
Surface Protection Treatments: Apply anti-oxidation coatings before cutting to mitigate high-temperature oxidation.

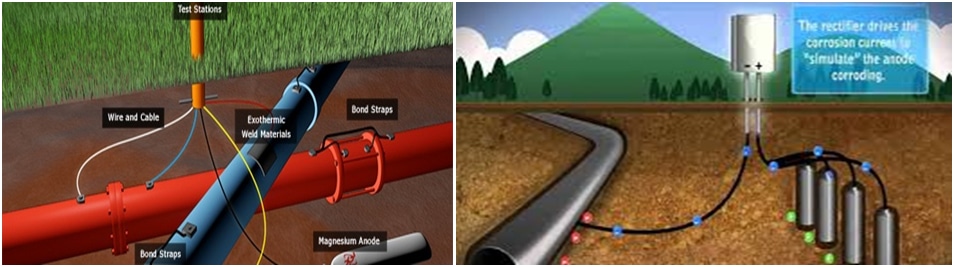

Principles of cathodic protection
Through external intervention, the entire metal surface becomes a cathode, eliminating the anodic zone and thus inhibiting the oxidative dissolution of the metal itself.
1. Sacrificial anode
The more active metal is connected as the anode and is preferentially corroded. Relying on the potential difference between the two metals, so that the flow of electrons, the principle of the primary cell, the anode package as the positive
Potential: a physical quantity that describes the level of potential energy at a point in an electric field.
Potential difference: the difference in point position between two points in an electric field, creating a voltage.
Common Materials and Applications：Magnesium alloy (standard electrode potential: – 1.7 V): for fresh water, low salinity soils (e.g. underground pipelines).
Zinc alloy (- 1.1 V): for seawater environments (ships, steel piles at docks).
Aluminum alloy (- 0.8 to – 1.1 V): Less usage in comparison due to rapid consumption.
Principle of Sacrificial Anode Method：The more active metal is connected as the anode and is preferentially corroded. Relying on the potential difference between the two metals, electrons flow to form the principle of primary battery, with the anode package as the positive pole and the protected object as the negative pole, and electrons flow from the anode package to the protected object.
Characteristics of sacrificial anode method：No external power supply, low initial cost, but high long-term maintenance cost, need to replace the anode periodically.
2. Cathodic protection by external current
- The metal is made into a cathode by an external current. Through the external power supply, forced electrolysis anode, so that the electrons to flow . Through the constant potential meter, the current is output to the anode, the current flows through the soil to the protected equipment, and the electrons flow through the inside of the constant potential meter to the protected equipment, and the electrons flow in the opposite direction to the current.
Principle and composition: Through the constant potential meter, the current is output to the anode, and the current flows through the soil to the protected equipment.
Characteristics of the external current method: Continuous external power supply is required, high initial cost, but low long-term maintenance cost, regular inspection of the power supply and system is sufficient.
Applicable Scenarios: Applicable to large or continuous structures, such as long-distance pipelines, steel piles of wharves, etc., and can be adapted to high-resistivity environments.
3. Comparison table between the two
Comparison Dimension Sacrificial Anode Method Impressed Current Method Principle Uses active metals (Zn, Mg, Al) to form a galvanic cell with the protected metal External power source forces current to polarize the metal to a protective potential Energy Dependency No external power required Requires continuous external power supply Initial Cost Low (only anode materials and installation) High (requires power supply, auxiliary anodes, control systems) Long-term Maintenance High (periodic anode replacement) Low (routine checks of power supply and systems) Applicable Scale Small or dispersed structures (e.g., ships, storage tanks) Large or continuous structures (e.g., long-distance pipelines, harbor steel piles) Environmental Suitability Suitable for low-resistivity environments (seawater, humid soil) Adaptable to high-resistivity environments (dry soil) Current Adjustability Fixed (depends on anode material properties) Flexible (dynamic current intensity adjustment) Service Life Short (anode consumption: 1-5 years) Long (auxiliary anode lifespan exceeds 20 years)
Chapter 2： MMO Anodes
MMO Anode Composition
Substrate: Pure titanium (e.g. Ta1, Ta2) is usually used as the substrate due to its excellent corrosion resistance, electrical conductivity and processability. Depending on the application scenario, the substrate can be made into plates, rods, meshes or other customized shapes.
Coatings: Coatings consist of mixed metal oxides, common oxides include: ruthenium oxide (Ru2O3), iridium oxide (Ir2O3), tantalum oxide (Ta2O₅), platinum oxide (PtO₂).
1. Specificities
Performance Advantage: Combining the mechanical strength of titanium and the catalytic activity of oxide coating, the high catalytic activity surface significantly reduces the over-potential of electrode reaction and promotes the high efficiency of electrochemical reactions (e.g., precipitation of chlorine, precipitation of oxygen reaction).
- Lifetime and cost: extremely low consumption rate and long lifetime, with a controllable lifetime of up to 50 years (only 5-15 years for traditional high-silicon cast iron anodes). Although the initial cost is higher than that of traditional anodes, the whole life cycle cost is lower (less maintenance and longer replacement cycle).
- Environmental adaptability: wide working current density, can work under the recommended current density in different fields, excellent anti-polarization performance, wide environmental adaptability, strong corrosion resistance, suitable for seawater, fresh water, soil, concrete and other media.
- Morphology and Installation: It can be made into mesh, ribbon, rod and other forms, supporting distributed installation or deep well anode ground bed.
- Environmental protection and energy saving: reduce power loss, and no heavy metal pollution risk is small.
2. Oxide Comparison and Rationing
| Metal Oxide | Chemical Formula | Advantages | Disadvantages | Applicable Scenarios |
|---|---|---|---|---|
| Ruthenium Oxide | Ru₂O₃ | – High conductivity – Relatively low cost – Good electrochemical stability | – May undergo oxidative degradation under extreme conditions – Sensitive to certain media | – Widely used in seawater/freshwater environments – Low to medium current density applications |
| Iridium Oxide | Ir₂O₃ | – Extremely high electrochemical stability – Suitable for high current densities | – High cost – Limited resource availability | – Highly corrosive environments (e.g., strong acids/alkalis) – High current density requirements |
| Tantalum Oxide | Ta₂O₅ | – Excellent performance in strong acids – High electrochemical stability | – Low conductivity – High cost | – Strong acid environments (e.g., chemical industry) – Low current density scenarios |
| Platinum Oxide | PtO₂ | – Outstanding electrochemical performance – Suitable for high current densities | – High cost – Resource scarcity | – Demanding environments (e.g., deep-sea, high-salinity) – High current density requirements |
- Data: International Energy Agency (IEA) “2025 Electrolyzer Technology Roadmap”, “Proton Exchange Membrane Electrolyzer Attenuation Mechanism Study”, Toshiba “Progress in the Development of Highly Stable Anode Materials”, “Platinum Group Metals Market Outlook 2025”.
3.Oxide ratios (examples)
Ruthenium-iridium based formulations
High catalytic activity, suitable for the chlor-alkali industry Ratio: RuO₂ : IrO₂ : TiO₂ = 30-40% : 10-20% : 40-60% Sources: Patent US 4,422,917 (De Nora Corp.), The Electrocatalysis in the Chlorine Industry”.
Iridium- Tantalum based formulations
Corrosion resistant, suitable for seawater electrolysis Ratio: IrO₂ : Ta₂O₅ : SnO₂ = 20-30% : 50-60% : 10-20% Source: ISO 12474:2019 (Standard for Marine Cathodic Protection Anodes), Perma-Chem Technical Manual (2023 Edition)

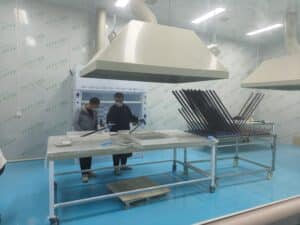

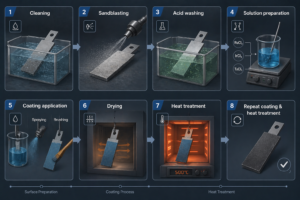

4.Preparation method
(Substrate surface treatment)
Cleaning: Remove oil, oxidized skin and other impurities from the surface of titanium substrate.
Sandblasting: Increase surface roughness by sandblasting to improve coating adhesion.
Acid washing: Use acid solution (e.g. nitric acid-hydrofluoric acid) to further clean the surface and form an active surface.
(Coated solution heat treatment)
Solution preparation: Select e.g. ruthenium chloride (RuCl₃), iridium chloride (IrCl₃), tantalum chloride (TaCl₅). Dissolve the precursor in a solvent (e.g., ethanol or isopropanol) to form a homogeneous coating solution. The solution concentration and composition ratio are adjusted as needed to optimize coating properties.
Coating application: The solution is uniformly applied to the surface of the titanium substrate by dipping, spraying or brushing, etc. The solution is dried at room temperature or low temperature, and the solvent is removed to form a uniform pre-coating.
Heat treatment: High temperature sintering: Heat treatment at high temperature (usually 400-600°C) to convert the coating into a stable metal oxide. Repeat coating and heat treatment as needed to ensure coating thickness and uniformity.

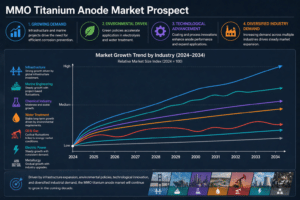

Market Analysis of MMO Anodes
Market prospect
Growing Demand for Corrosion Prevention:The rapid development of infrastructure (e.g., bridges, pipelines, ports) and marine engineering (e.g., ships, offshore platforms) continues to increase the demand for efficient corrosion prevention technology.
2.Driven by environmental protection policies:The global emphasis on environmental protection and sustainable development has promoted the application of green technologies and materials.The application of MMO titanium anode in electrolysis industry (e.g. chlor-alkali industry) and water treatment meets the requirements of environmental protection and has great market potential.
3.Technological advancement:Continuous progress in coating technology and manufacturing process has enhanced the performance and application scope of MMO titanium anode. The research and development of new mixed metal oxide materials have further improved the conductivity and corrosion resistance of the anode.
4.Diversified Industry Demand:Increasing demand for high-performance anodes in oil & gas, chemical, electric power, metallurgy and other industries is driving the market expansion of MMO titanium anode.

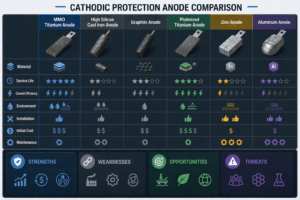

SWOT analysis
Strengths:
Technology updates in downstream industries will expand demand.
Long life and low cost (long term).
Adaptable to a wide range of media (seawater, freshwater, soil) and complex environments for a wide range of applications.
Weaknesses
High technological threshold, complex coating preparation and heat treatment process, requiring high level of equipment and technical support.
Insufficient market awareness, some customers have insufficient understanding of the performance and advantages of MMO titanium anode.
Opportunities
Growing market demand: Rapid development of offshore engineering, oil and gas industry, infrastructure and other fields, the demand for high-performance anodes continues to increase. Emerging environmental protection technologies such as hydrogen production from electrolyzed water and sewage treatment provide new market opportunities for MMO titanium anodes. The global emphasis on environmental protection and sustainable development promotes the application of green materials.
- Threats Increased market competition: Competition is becoming increasingly fierce, and some companies are seizing market share through low price strategies, affecting industry profits.
Threat of substitutes: industrialization of graphene will cause increased market competition. The research and development of new materials (such as carbon-based materials) may compete with MMO titanium anode.
Key Benefits of MMO Anodes
1.Long Life & Low Maintenance Cost:MMO anode has long life and low maintenance cost, suitable for long term use.
2.High efficiency and energy saving: MMO anode reduces power loss by 20-30% compared with graphite anode, which meets the requirement of energy saving.
3.Adaptability to all scenarios:Applicable to various scenarios such as oil and gas industry, marine engineering, infrastructure field, new energy, etc., one material can be used for multiple purposes.
4.Environmental compliance: global carbon tax policy is tightened, MMO anode can be recycled although there is a risk of heavy metal leaching, and it complies with EU REACH and China RoHS standards.
Common Welding Issues in Titanium Processing and How to Address Them
Titanium welding, while essential for producing high-quality titanium anode products, presents unique challenges due to titanium’s reactivity and physical properties. Below, we outline common issues, their solutions, and strategies to mitigate risks during the welding process.
1. Common Issues in Titanium Welding
1.1 Oxidation During Welding
- Problem: Titanium reacts easily with oxygen, nitrogen, and hydrogen at high temperatures, leading to oxidation or embrittlement in the weld zone. This results in weaker welds and compromised corrosion resistance.
- Solution:
- Use high-purity inert gases (e.g., argon or helium) for shielding, ensuring the weld zone is fully protected.
- Implement double-sided shielding for complete coverage, particularly for thin titanium sheets.
- Use trailing shields or chambers for large or complex components.
1.2 Heat-Affected Zone (HAZ) Deformation
- Problem: Excessive heat input can cause deformation, stress concentrations, or grain growth in the HAZ, leading to weaker weld seams.
- Solution:
- Optimize welding parameters (e.g., reduce current or increase travel speed) to minimize heat input.
- Use pulsed welding techniques for better control over thermal input.
- Preheat thicker titanium components to reduce thermal gradients and post-weld cooling rates.
1.3 Porosity in Weld Seams
- Problem: Porosity occurs when gas bubbles are trapped in the weld pool, often caused by insufficient shielding or contaminants on the material surface.
- Solution:
- Ensure all surfaces are thoroughly cleaned before welding, removing grease, oil, and oxides.
- Maintain constant and sufficient gas flow rates during welding.
- Use high-quality titanium filler wire and ensure it is free of contaminants.
1.4 Weld Cracking
- Problem: Cracking can result from rapid cooling, excessive stress, or impurities in the weld zone. This compromises weld integrity and product durability.
- Solution:
- Implement preheating and controlled cooling processes to reduce thermal stress.
- Use welding wire that matches the base material’s composition and properties.
- Minimize residual stresses through proper joint design and stress-relief treatments.
1.5 Contamination from Tooling or Environment
- Problem: Improper handling or environmental contamination introduces impurities into the weld area, causing defects or reduced performance.
- Solution:
- Ensure all welding tools are cleaned and designated for titanium use only.
- Perform welding in a controlled, clean environment to prevent airborne contamination.
- Use protective clothing and gloves to prevent oils or sweat from contacting the titanium surface.
2. Strategies to Mitigate Welding Issues
2.1 Advanced Equipment and Technology
- Use automated or robotic welding systems for consistency and precision, reducing human error.
- Employ advanced welding methods like electron beam welding (EBW) or laser beam welding (LBW) for high-precision applications with minimal thermal distortion.
2.2 Comprehensive Testing and Monitoring
- Perform real-time monitoring of welding parameters (e.g., temperature, gas flow) to ensure optimal conditions.
- Conduct post-weld inspections using X-ray or ultrasonic testing to identify and address hidden defects.
- Use helium leak testing for critical applications requiring airtight welds.
2.3 Process Optimization
- Develop detailed welding procedure specifications (WPS) tailored to each project, including parameter settings and quality checks.
- Perform trial welds or sample testing to validate processes before full-scale production.
- Incorporate stress-relief techniques like annealing for components exposed to repeated thermal cycles.
3. Preventative Measures for Avoiding Welding Issues
| Issue | Preventative Measure |
|---|---|
| Oxidation | Double-sided gas shielding, high-purity argon, trailing shields. |
| HAZ Deformation | Optimize heat input, use pulsed welding, preheat components. |
| Porosity | Clean surfaces thoroughly, maintain consistent gas flow, use pure filler wire. |
| Weld Cracking | Preheat components, match filler wire, control cooling rates. |
| Contamination | Use clean, titanium-specific tools; ensure clean working environment. |
4. Why Addressing These Issues Matters for Titanium Anodes
- Product Performance: Ensuring strong, defect-free welds enhances the durability and corrosion resistance of titanium anodes in harsh operating environments.
- Cost Efficiency: Avoiding rework and defects reduces production costs and improves delivery timelines.
- Coating Quality: Smooth, high-quality weld seams are essential for achieving uniform precious metal coatings.
Conclusion
By proactively addressing common welding challenges and implementing best practices, we ensure the highest standards for titanium anode manufacturing. If you have specific concerns or project requirements, we’re ready to provide tailored solutions to meet your needs.
How Welding Processes Impact Titanium Anode Quality and Cost？
Welding is a critical step in titanium anode manufacturing, directly influencing product performance, durability, and cost. Choosing the right welding method depends on factors such as the sequence of production processes, potential thermal impacts from repeated sintering, and the desired balance between quality and price. Below, we explore these aspects to help purchasers make informed decisions.
1. Key Factors Affecting Quality and Cost
Impact on Quality:
- Weld Strength: Ensuring robust welds is essential to prevent detachment or leakage in harsh electrolytic environments.
- Thermal Stability: Repeated sintering during coating processes can cause weld deformation, potentially compromising product performance.
- Surface Finish: Smooth, defect-free weld seams are crucial for even coating application.
Impact on Cost:
- Welding Complexity: Advanced methods like electron beam welding (EBW) are precise but costly, while TIG welding offers a cost-effective alternative for simpler designs.
- Post-Weld Treatments: Processes like polishing or additional testing increase overall costs but enhance quality.
- Process Sequence: Welding before or after coating affects the need for additional protections, influencing total expenses.
2. Choosing the Right Welding Method
Before or After Coating?
- Before Coating: Preferred for processes involving repeated sintering, as the coating layers are not exposed to thermal stress during welding. However, this requires welds to endure subsequent high-temperature sintering.
- After Coating: Suitable for products where precise coating coverage is critical, but special care must be taken to prevent welds from damaging the coating.
3. Comparative Overview of Welding Methods
| Welding Method | Impact on Quality | Impact on Cost | Best Applied |
|---|---|---|---|
| TIG Welding | High precision and strong welds; moderate thermal stress. | Low to Moderate | Thin components or standard designs. |
| Plasma Arc Welding (PAW) | Excellent for thicker materials; high weld stability. | Moderate to High | Large or complex structures. |
| Electron Beam Welding (EBW) | Extremely precise; minimal distortion but requires vacuum environment. | High | High-end, ultra-precise applications. |
| Laser Beam Welding (LBW) | High precision and speed; moderate thermal stress. | High | Mass production with tight tolerances. |
| Resistance Welding | Limited to certain joint types; may leave marks. | Low | Simple joints with lower strength needs. |
4. Recommendations for Titanium Anode Purchasers
Evaluate Product Requirements:
- For products undergoing repeated sintering, prioritize welding methods that minimize thermal deformation (e.g., EBW or PAW).
- For designs requiring uniform coating, ensure weld seams are smooth and defect-free.
Consider Production Sequence:
- If welding is performed before coating, use high-temperature-resistant methods to maintain weld integrity.
- If welding is done after coating, ensure that protective measures are in place to prevent coating damage.
Balance Quality and Cost:
- For premium-quality products, advanced methods like EBW or LBW ensure the highest precision.
- For standard applications, TIG welding offers a cost-effective solution without compromising reliability.
Conclusion
Understanding how welding affects titanium anode quality and cost allows you to make informed decisions that align with your production and budget goals. Choosing the right welding method and process sequence ensures optimal performance and durability for your titanium anode products.
If you have specific project requirements, feel free to reach out—we can provide tailored recommendations for your needs!
Chapter 3：Support and Optimization
How to Simplify Your Titanium Anode Production Challenges?
In titanium anode production, precise cutting and welding processes are essential. They directly impact product performance and cost control. We understand the challenges you face, such as maintaining strict angle tolerances during sintering, ensuring consistent welding quality, and balancing production costs. Here’s how we provide tailored solutions to simplify these complex issues and make collaboration more efficient:
1. Precision-Based Recommendations
Cutting and Welding Process Selection:
Our team analyzes your specific requirements, such as angle tolerances or joint strength, and recommends the most suitable cutting (e.g., laser, waterjet) and welding (e.g., TIG, PAW) techniques to achieve the best results while controlling costs.- Example: For a water treatment titanium anode order with a titanium mesh surrounded by titanium frame strips, we suggested cutting the mesh and frame to size, brushing and sintering them separately, and then welding them. This maintained coating integrity and reduced deformation from stress release after sintering. However, the client insisted on coating all surfaces, requiring cutting and welding before brushing and sintering. As a result, the titanium mesh and frame experienced different stress releases during sintering, causing warping. We had to remove the warped parts, flatten them, and re-weld, which increased costs and production time.
Prototype Validation:
Before mass production, we can create small prototypes that match the final design. For example, in a recent plating industry project, we produced a 50mm x 50mm prototype with a 30° bend angle, using the same cutting and welding parameters as the final product. This allowed us to simulate angle changes during sintering and optimize production parameters.
2. Efficient Problem Solving During Production
Comprehensive Technical Guidance:
Our experts provide full support in choosing the sequence of cutting, welding, and brushing processes to ensure smooth transitions. We help clients prioritize critical processes, such as completing cutting and welding before brushing and sintering, to reduce the impact of stress release.- Example: For an anode with a 45° bend angle, we recommended cutting and welding before coating and optimized welding parameters (current: 80A, welding speed: 150mm/min) to minimize deformation during high-temperature sintering. For cases where clients altered the sequence, we offered correction solutions to resolve welding deformation issues.
Preventative Solutions:
We focus on preventative measures, such as simulating the effects of processes before production. Thermal simulations predict angle deviations under specific sintering conditions, allowing us to adjust cutting and welding tolerances and refine the sequence based on post-sintering results to ensure the final product meets specifications.
3. Flexible Support Options
- Comprehensive Remote Support:
Our team is available via video calls, phone, or email to troubleshoot cutting precision and optimize welding strength in real time. - Pre-Production Simulation Services:
For critical projects, we offer simulation services to identify potential issues early. For example, in a batch of titanium anodes sintered at 750°C, simulations revealed a 0.5° angle deviation. We adjusted the initial cutting tolerance by 0.4mm to ensure accuracy in the final production.
4. Long-Term Collaboration for Process Improvement
- Post-Delivery Consulting Services:
After delivery, we continue to monitor how cutting, welding, and brushing processes impact the long-term performance of titanium anodes. - Ongoing Process Optimization:
We regularly provide updates and suggestions, such as optimizing welding parameters or jig designs, to improve batch consistency and reduce future order costs.
By focusing on the details of titanium cutting and welding, we simplify the production process and deliver precision, flexibility, and efficiency at every stage. Partnering with us means having a reliable team dedicated to ensuring your titanium anodes meet the highest standards in both performance and cost-effectiveness.
Let Us Solve Your Challenges Together
From maintaining angles to ensuring welding quality, we provide comprehensive, worry-free support for your titanium anode production. Contact us to explore how we can support your next project!
What Customized Solutions Do We Offer for Unique Processing Needs?
In the production of titanium anodes, every customer’s needs are unique. Whether it’s urgent orders, strict tolerance requirements, or ensuring stability in mass production, we provide flexible, customized services to ensure your titanium anode products meet your specifications and are delivered efficiently. Below are the solutions we offer in cutting and welding to address these special requirements.
Below is a concise summary table for quick reference:
| Requirement | Solution |
|---|---|
| Urgent Orders | Comprehensive consideration of the fastest production methods, adjustment of processing steps, and accelerated validation to ensure timely delivery. |
| Strict Tolerance Requirements | Optimized cutting paths and welding parameters with prototype simulation and validation to meet precise specifications. |
| Consistency in Mass Production | Use automated cutting and welding equipment combined with standardized process control to ensure product consistency and production efficiency. |
| Customized Solutions | Design specialized jigs, provide tailored processing plans, and collaborate with clients to develop production processes that meet their specific needs. |
1. Quick Response for Urgent Orders
Fast Processing Plans:
For urgent orders, we prioritize and adjust processing steps based on product design and difficulty. For example, for an urgent batch of titanium anode mesh, we first conduct surface pre-treatment on the entire titanium sheet before cutting and welding. Treating the surface of a full sheet is far more efficient than handling smaller pieces individually. This flexible adjustment reduces processing time significantly while maintaining welding strength, precision, and consistency.Flexible Production Scheduling:
Our production lines are highly adaptable and can reallocate resources for urgent orders. After cutting and welding, we accelerate sample validation and batch inspection to ensure timely delivery without compromising quality.
2. Meeting Strict Tolerance Requirements
Process Optimization Support:
For products with extremely strict tolerance requirements, we provide precise cutting path designs and optimized welding parameters. For instance, in a titanium anode project requiring an angle tolerance of ±0.2°, we used CNC laser cutting combined with low-heat-input TIG welding. This achieved post-sintering deformation control within ±0.15°.Multiple Verification and Adjustments:
Before production, we simulate the effects of cutting and welding on the final product to estimate tolerance changes and make necessary adjustments. For example, we use small prototypes to test stress release during welding and optimize welding speed, current, and jig designs based on the results.
3. Enhancing Consistency in Mass Production
Automated Processing Equipment:
For large-volume orders, we use automated laser cutting and welding equipment to ensure uniformity across all products. Automated systems precisely control cutting dimensions and welding parameters, reducing human error and improving production efficiency.Stable Process Control:
With standardized cutting and welding process cards, we ensure every batch meets design requirements. For example, for a customer’s order of 1,000 titanium anode components, we maintained dimensional error below 0.1mm through standardized processes and online inspections.
4. Tailored Solutions for Specific Needs
Custom Jigs and Molds:
For complex cutting or welding requirements, we design specialized jigs or molds to ensure precision and efficiency during production. For instance, we created custom jigs for a multi-angle titanium anode component, which significantly reduced welding stress and deformation.Technical Consultation and Co-Development:
Our engineering team works closely with customers to develop processing solutions tailored to specific needs. For titanium anodes requiring multiple rounds of sintering, we adjusted the welding sequence and cutting allowances to minimize angle changes during the sintering process.
Through flexible processing workflows, advanced equipment, and professional technical support, we can meet the unique processing needs of our customers. If you face similar challenges or need a customized solution, feel free to contact us. We are committed to providing efficient and reliable services to ensure your titanium anode products meet the highest standards from design to delivery.
What Happens After Your Order? Clear and Transparent Support Process
In titanium anode production, cutting and welding are critical processes that determine product quality. Our goal is to ensure every order is handled clearly and transparently, from initial communication to final delivery. Here’s a step-by-step explanation of how we manage your order:
1. Starting Your Order: What Do We Need to Know?
- What You Provide: Product drawings, target tolerances, material requirements, welding angles, or flatness specifications.
- What We Provide: Process analysis, optimization suggestions (e.g., laser or waterjet cutting? TIG or PAW welding?), and a preliminary production plan.
Example: A customer requested a welded frame with an angle tolerance of ±0.2°. We included a pre-treatment step in the process to minimize deformation caused by stress release during production.
2. Sample Stage: How Do We Ensure Accuracy Before Mass Production?
- What You Provide: Specific key parameters (e.g., priority on angle precision, welding strength, or flatness).
- What We Provide: Sample production and testing data, including cutting size accuracy, weld strength, and simulated angle changes after sintering.
Example: For a batch of titanium anode mesh, we created 100mm x 100mm samples to simulate how high-temperature sintering would affect welded frames. The results helped us adjust the welding sequence for better consistency.
3. Mass Production: How Do We Ensure Consistency?
- What You Provide: Batch consistency requirements and any special quality checks (e.g., online inspection or third-party validation).
- What We Provide: Real-time monitoring data during production (e.g., weld angles within ±0.3°, size tolerances within 0.1mm) and batch quality reports.
Highlight: Using automated laser cutting and online monitoring tools, we ensure that every product meets design specifications.
4. Delivery and After-Sales: How Do We Continue to Support You?
- What You Provide: Feedback on product performance (e.g., deformation, durability, or dimensional stability).
- What We Provide: Cause analysis, process improvement suggestions (e.g., adjusting welding heat input or optimizing cutting paths), and technical solutions for future orders.
Example: A customer reported slight deformation in high-temperature use. We suggested increasing cutting allowances and optimizing welding fixtures in the next batch to resolve the issue.
Clear Workflow at a Glance
| Stage | What You Provide | What We Deliver |
|---|---|---|
| Order Inquiry | Drawings, tolerances, welding, or material requirements | Process suggestions, optimized plans |
| Sample Testing | Key parameters (e.g., size, angle, flatness) | Test data, identified issues, and optimization ideas |
| Mass Production | Batch consistency and special quality requirements | Real-time quality data (size, weld strength, etc.) |
| Delivery & Support | Performance feedback (e.g., deformation, durability) | Cause analysis, process improvements, and long-term support |
Why Choose Us?
With a clear and transparent process and detailed feedback at every stage, we ensure your order progresses seamlessly from design to delivery. Whether you have special requirements for titanium anode cutting and welding, we’re here to provide efficient and reliable solutions. Contact us today!
This simplified English version maintains clarity and highlights key points to resonate with your customers. Let me know if further adjustments are needed!
Why Trust Us for Long-Term Titanium Anode Support?
When it comes to titanium anode production, long-term success depends on more than just delivering high-quality products. It’s about providing continuous support, technical innovation, and reliable service that evolves with your needs. Here’s how we build trust and add value over time:
1. Continuous Technical Upgrades
We believe that the key to improving titanium anode production lies in embracing cutting-edge technologies. For instance, while simulation modeling has traditionally been too costly for titanium anodes, advancements in AI and computational tools are making this approach more affordable. By simulating production processes—including cutting and welding steps—we can predict potential issues and optimize parameters before production even begins. This proactive approach helps reduce errors, save costs, and ensure the highest quality outcomes.
Future Vision: As simulation technology becomes more cost-effective, it will play a pivotal role in minimizing risks during production. We’re actively exploring how these tools can provide our clients with the most cost-efficient solutions to potential challenges in cutting and welding.
2. Continuous Optimization Services
We don’t stop at delivering your products; we continually look for ways to improve your production outcomes. Our team regularly reviews feedback from your orders to identify areas for improvement. For example:
Adjusting welding sequences to enhance angle stability during sintering.
Fine-tuning cutting allowances to account for material behavior in high-temperature applications.
Recommending tailored jig designs to improve assembly precision.
These incremental improvements ensure your products perform better over time while helping you reduce costs.
3. Fast and Reliable Response
In the fast-paced world of manufacturing, responsiveness matters. Whether it’s troubleshooting an issue or implementing last-minute design changes, we pride ourselves on our ability to adapt quickly:
Technical Support: Our engineers are available for remote consultations, video conferences, or onsite visits when needed.
Rapid Feedback: When challenges arise during cutting or welding, we provide actionable solutions within hours, minimizing disruptions to your production timeline.
Flexible Adjustments: If production requirements change, we can quickly adapt cutting paths or welding parameters to meet updated specifications.
4. Building Trust for the Future
Our commitment to long-term collaboration means we invest in your success. By integrating advanced tools like AI-driven simulations and refining our processes with your feedback, we’re not just solving today’s challenges—we’re preparing for tomorrow’s demands.
Visionary Solutions: As simulation costs decrease, we’re positioned to bring these innovations into mainstream titanium anode production, offering unprecedented accuracy and efficiency.
Proactive Problem-Solving: Our ability to anticipate and mitigate issues through simulation, technical expertise, and rapid response creates a seamless experience for our clients.
By choosing us, you gain a partner dedicated to providing continuous improvement and forward-thinking solutions for titanium anode production. Let’s work together to make every step—from cutting to welding—efficient, reliable, and future-ready.
Chapter 4：Summarize
Ehisen wants you to know
At Ehisen, we recognize that the success of titanium anode production relies on precision, innovation, and collaboration. We are committed to being more than just a supplier; we aim to be a trusted partner in helping you achieve optimal results in cutting and welding processes.
Our approach focuses on working closely with you to identify the most efficient and cost-effective solutions for your specific requirements. Whether it’s refining cutting paths, optimizing welding sequences, or exploring advanced tools like simulation modeling, we tailor our expertise to align with your goals. This ensures that your titanium anodes meet stringent quality standards while maintaining competitive pricing and reliable performance.
We believe that every challenge is an opportunity to innovate. By leveraging advanced techniques and maintaining open communication, we ensure that your production process is streamlined and your expectations are consistently exceeded. From initial consultations to after-sales support, we stand by you at every step, offering guidance, transparency, and continuous improvement.
At Ehisen, your success is our greatest achievement. Let’s collaborate to create smarter, more effective solutions for titanium anode production that deliver long-term value.
Supply & services
Our value go beyond titanium processing
Finding a reliable processor of titanium products is essential to your business success, and Ehisen is here to be that partner.
